System Diagram [08/2016 - 11/2017]

  1. WIPER AND WASHER SYSTEM

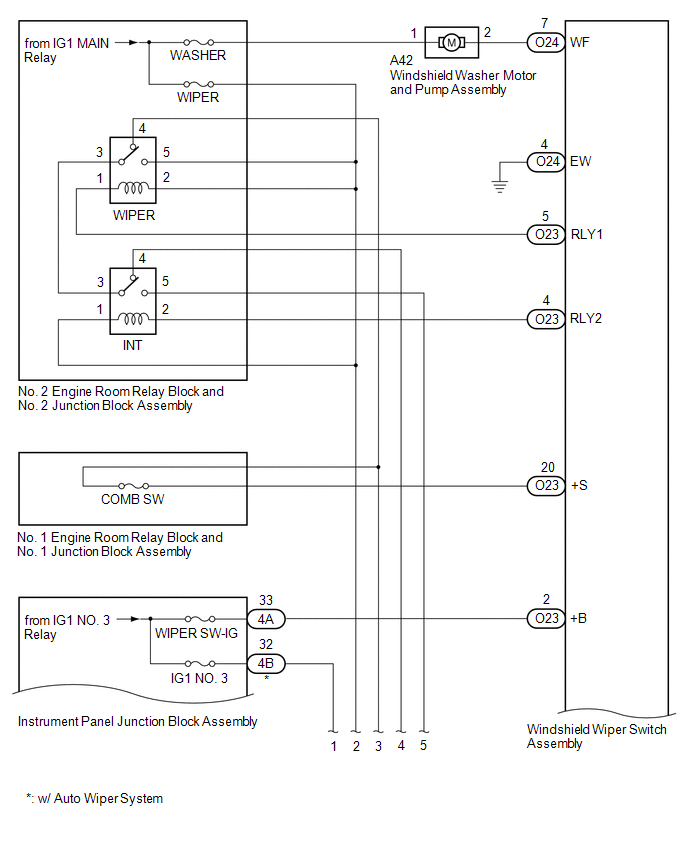

    Fig 1: Wiper And Washer System Diagram (1 Of 2)
    GTY520732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

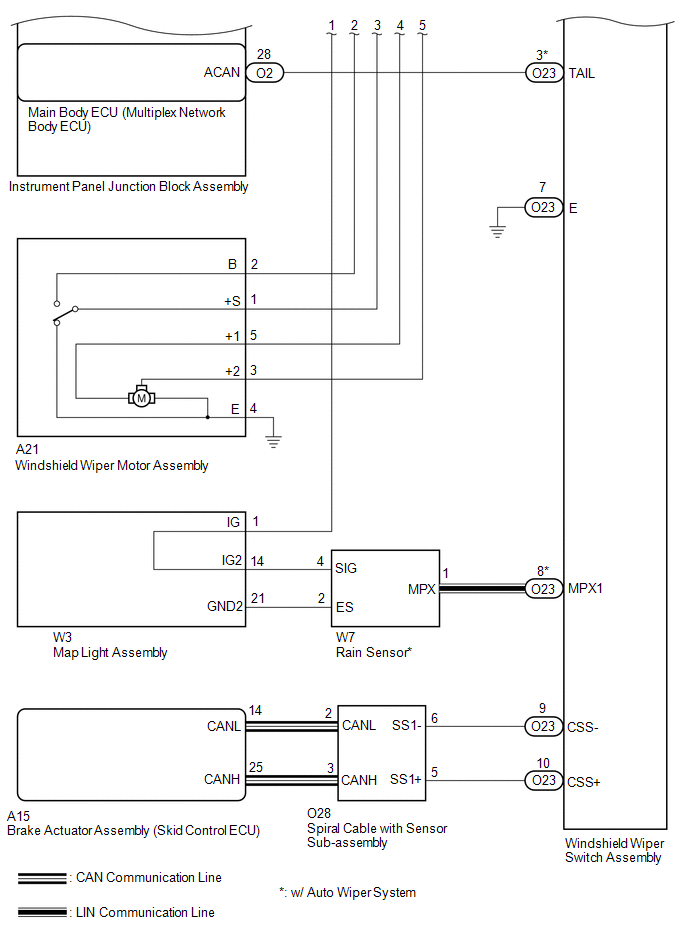

    Fig 2: Wiper And Washer System Diagram (2 Of 2)
    GTY638093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. HEADLIGHT CLEANER SYSTEM (w/ Headlight Cleaner System)

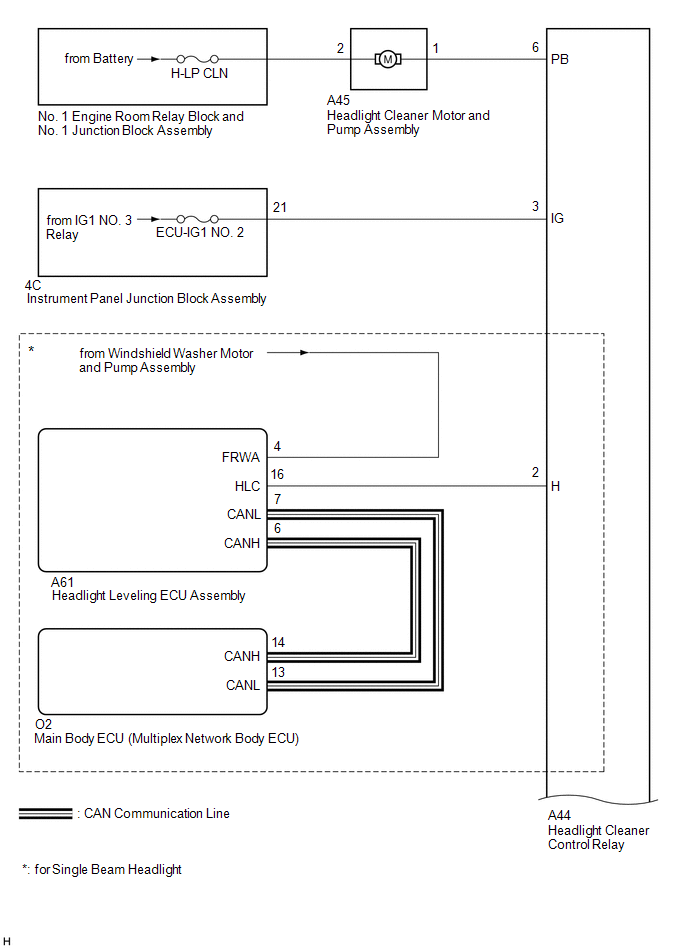

    Fig 3: Headlight Cleaner System (W/ Headlight Cleaner System) Diagram (1 Of 2)
    GTY499262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

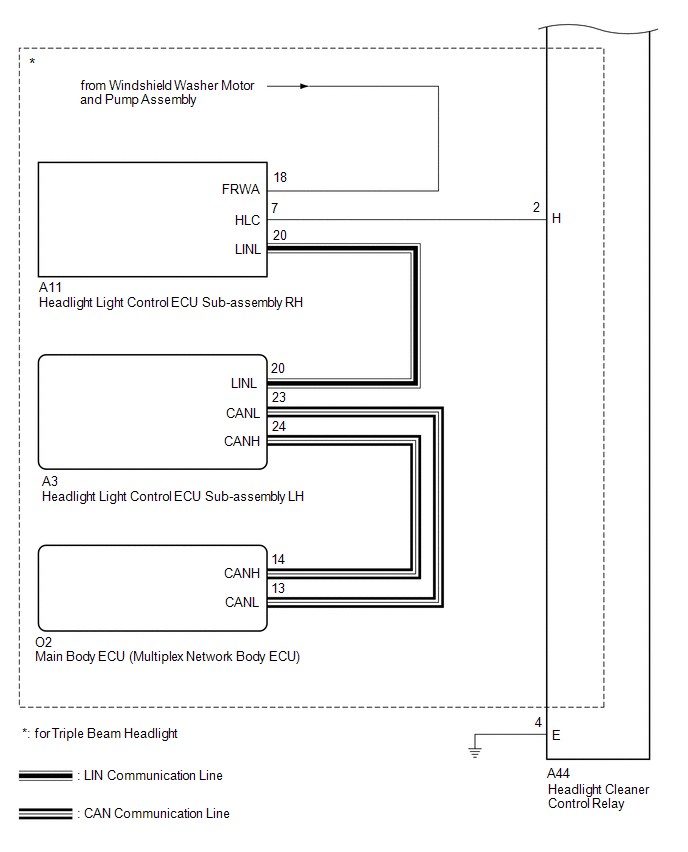

    Fig 4: Headlight Cleaner System (W/ Headlight Cleaner System) Diagram (2 Of 2)
    GTY519042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. WASHER FLUID LEVEL WARNING SYSTEM

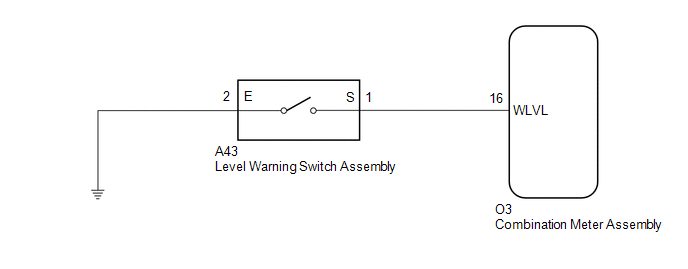

    Fig 5: Washer Fluid Level Warning System Diagram
    GTY521261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
