Components [09/2014 - ]

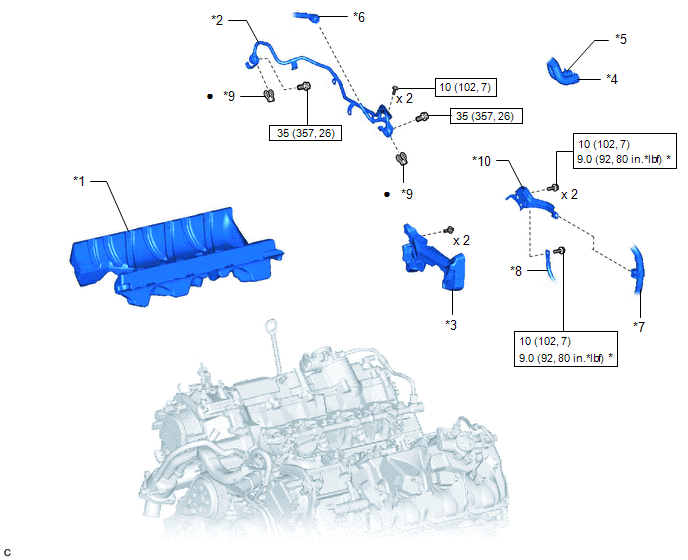

Fig 1: Fuel Pump (High Pressure) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 ENGINE COVER SUB-ASSEMBLY	*2	NO. 1 FUEL PIPE SUB-ASSEMBLY
*3	NO. 3 COVER SUB-ASSEMBLY	*4	INLET HEATER WATER HOSE
*5	OUTLET HEATER WATER HOSE	*6	FUEL TUBE SUB-ASSEMBLY
*7	ENGINE WIRE	*8	NO. 2 ENGINE WIRE
*9	GASKET	*10	WIRE HARNESS BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-

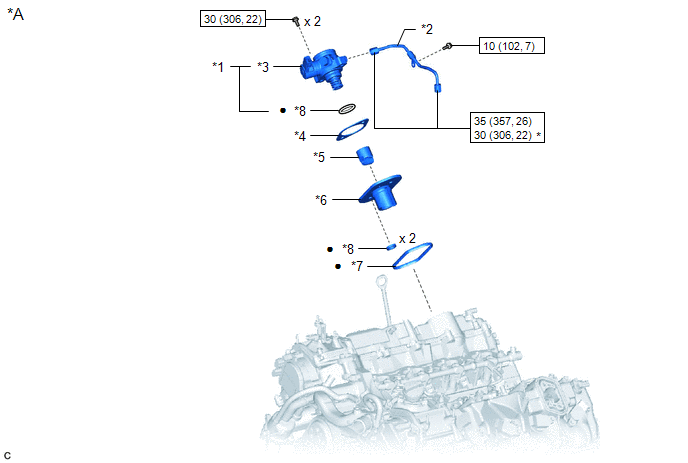

Fig 2: Fuel Pump (High Pressure) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Bank 1	-	-
*1	FUEL PUMP WITH SEAL SUB-ASSEMBLY	*2	NO. 3 FUEL PIPE SUB-ASSEMBLY
*3	FUEL PUMP SUB-ASSEMBLY	*4	FUEL PUMP INSULATOR
*5	FUEL PUMP LIFTER ASSEMBLY	*6	FUEL PUMP LIFTER GUIDE
*7	FUEL PUMP SPACER GASKET	*8	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-

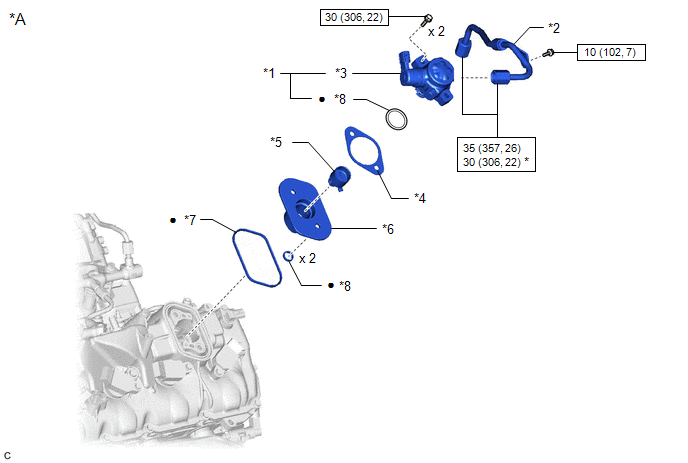

Fig 3: Fuel Pump (High Pressure) Replacement Components With Torque Specifications (3 Of 3)

*A	for Bank 2	-	-
*1	FUEL PUMP WITH SEAL SUB-ASSEMBLY	*2	NO. 2 FUEL PIPE SUB-ASSEMBLY
*3	FUEL PUMP SUB-ASSEMBLY	*4	FUEL PUMP INSULATOR
*5	FUEL PUMP LIFTER ASSEMBLY	*6	FUEL PUMP LIFTER GUIDE
*7	FUEL PUMP SPACER GASKET	*8	O-RING
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-
