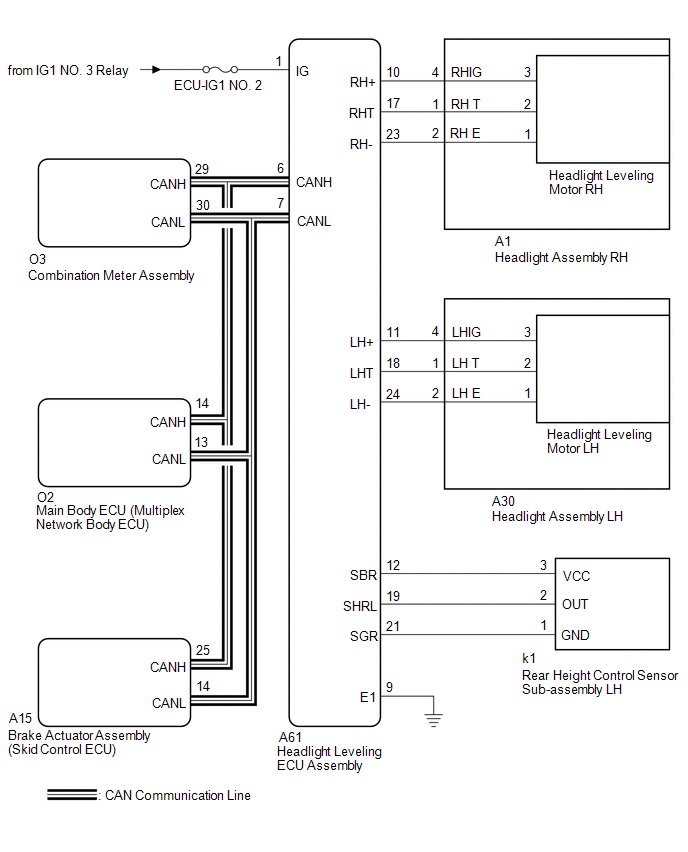

System Diagram [09/2014 - 11/2017]

WARNING: This page is about a different car, the 2019 Lexus RC F, 2018 Lexus RC F, 2017 Lexus RC F, 2016 Lexus RC F, and 2015 Lexus RC F. However, it is still accessible from the selected car via links, so may be relevant.
GTY496856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
