Installation [09/2015 - ]: Procedure

  1. INSTALL ID CODE BOX (IMMOBILIZER CODE ECU)

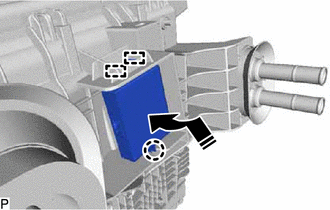

    1. Engage the 2 guides and claw as shown in the illustration to install the ID code box (immobilizer code ECU).
      GTY639245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL AIR CONDITIONER UNIT ASSEMBLY

    Refer to INSTALLATION [09/2015 - 12/2017] , or refer to INSTALLATION [12/2017 - 08/2019] , or refer to INSTALLATION [08/2019 - ]
