Removal [08/2016 - 08/2019]: Procedure

  1. REMOVE AIR CONDITIONER UNIT ASSEMBLY

    Refer to REMOVAL [08/2016 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019]

  2. REMOVE ID CODE BOX (IMMOBILIZER CODE ECU)

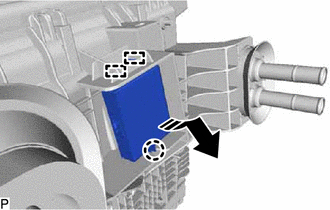

    1. Disengage the claw and 2 guides to remove the ID code box (immobilizer code ECU) as shown in the illustration.
      GTY676782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
