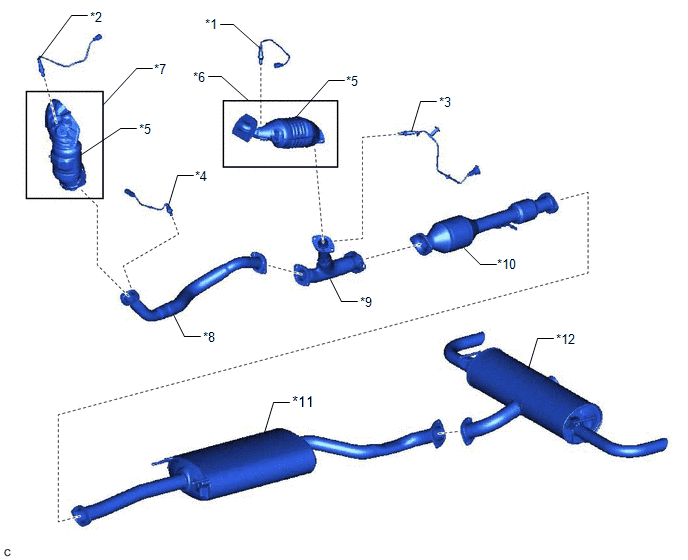

Catalyst Location
| *1 | Air Fuel Ratio Sensor (Bank 1 Sensor 1) | *2 | Air Fuel Ratio Sensor (Bank 2 Sensor 1) |
| *3 | Heated Oxygen Sensor (Bank 1 Sensor 2) | *4 | Heated Oxygen Sensor (Bank 2 Sensor 2) |
| *5 | TWC: Front Catalyst | *6 | Exhaust Manifold |
| *7 | Exhaust Manifold Assembly LH | *8 | Front Exhaust Pipe Assembly |
| *9 | Front No. 3 Exhaust Pipe Assembly | *10 | Center Exhaust Pipe Assembly (TWC: Rear Catalyst) |
| *11 | Tail Exhaust Pipe Assembly | *12 | No. 2 Tail Exhaust Pipe Assembly |
NOTE:
- If DTC P0420-00 is output, replace the exhaust manifold (*6) and the center exhaust pipe assembly (*10) together when catalyst replacement is necessary (Excluding air fuel ratio sensor*1 and heated oxygen sensor*3).
- If DTC P0430-00 is output, replace the exhaust manifold assembly LH (*7) and the center exhaust pipe assembly (*10) together when catalyst replacement is necessary (Excluding air fuel ratio sensor*2 and heated oxygen sensor*4).
