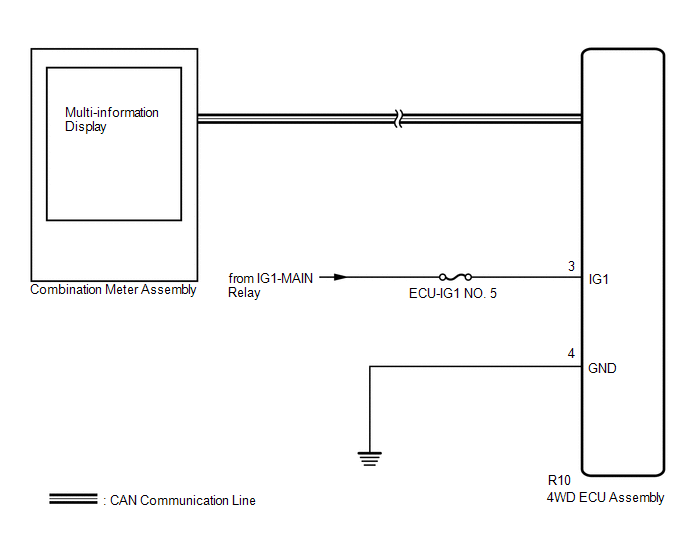

AWD Warning Light Remains ON [09/2015 - ]: Wiring Diagram

GTY633917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
