Components [09/2015 - ]

WARNING: This page is about a different variant/trim than selected.

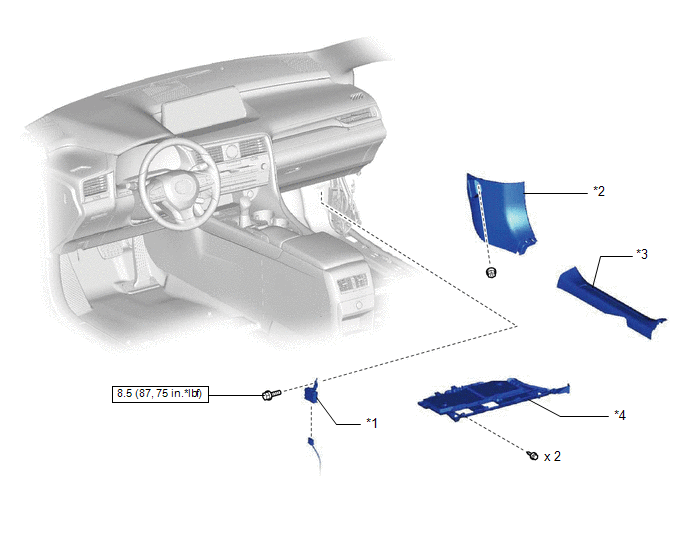

Fig 1: 4WD Control ECU Replacement Components With Torque Specifications
GTY665208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 4WD ECU ASSEMBLY *2 COWL SIDE TRIM BOARD RH
*3 FRONT DOOR SCUFF PLATE RH *4 NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -
