Installation [09/2015 - ]: Procedure

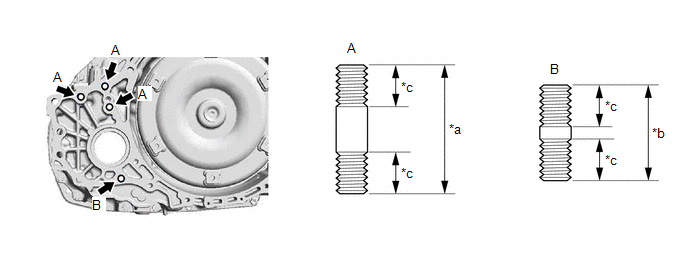

1. Install 4 new transfer and transaxle setting stud bolts to the automatic transaxle assembly positions shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	69 mm (2.72 in.)	*b	49 mm (1.93 in.)
   *c	22 mm (0.866 in.)	-	-

   Torque: 39.2 N*m (400 kgf*cm, 29 ft.*lbf)

   NOTE:

   Install the sealed side of the transfer and transaxle setting stud bolt to the automatic transaxle assembly.

2. Install the transfer assembly to the automatic transaxle assembly with the 8 nuts.

   Torque: 68.6 N*m (700 kgf*cm, 51 ft.*lbf)

   NOTE:

   • Install the transfer assembly to the automatic transaxle assembly horizontally.
   • Do not touch the transfer assembly oil seals during installation.

Refer to INSTALLATION [09/2015 - 12/2017] , or refer to INSTALLATION [12/2017 - 08/2019] , or refer to INSTALLATION [08/2019 - ]
