Removal [08/2016 - 08/2019]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE AUTOMATIC TRANSAXLE ASSEMBLY
Refer to REMOVAL [08/2016 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019]

REMOVE TRANSFER ASSEMBLY

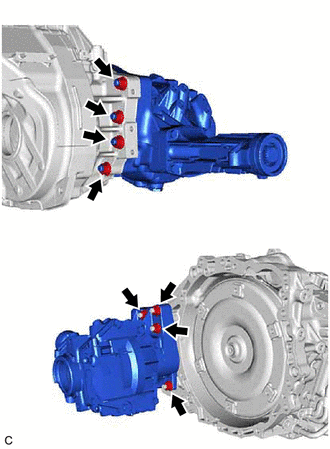

Remove the 8 nuts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a plastic hammer, remove the transfer assembly from the automatic transaxle assembly.
NOTE:
- Remove the transfer assembly from the automatic transaxle assembly without tilting it.
- During removal, do not hold the transfer assembly by the oil seals on either side of the transfer assembly.

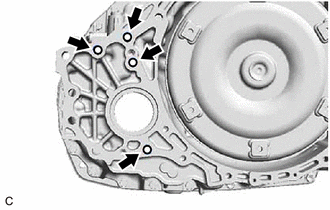

Remove the 4 transfer and transaxle setting stud bolts from the automatic transaxle assembly.

HINT:

Perform this procedure only when replacement of the transfer and transaxle setting stud bolt is necessary.
