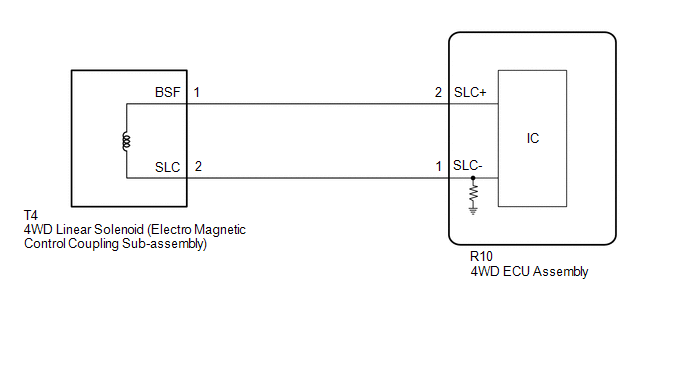

DTC C1298/98: Linear Solenoid Circuit [09/2015 - 08/2019]: Wiring Diagram

GTY639781

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
