Components [03/2018 - 08/2019]

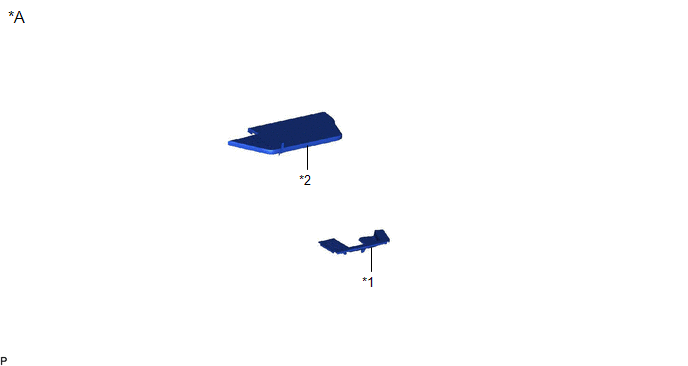

Fig 1: Navigation Receiver Replacement Components [03/2018 - 08/2019] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Rear No. 2 Seat	-	-
*1	DECK BOARD ASSEMBLY	*2	REAR DECK FLOOR BOX

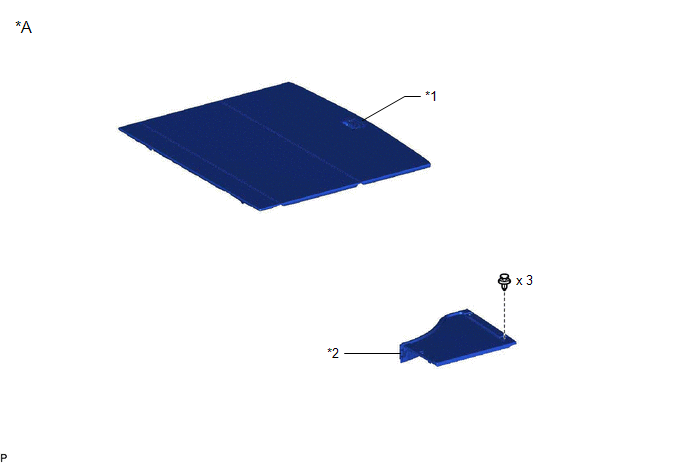

Fig 2: Navigation Receiver Replacement Components [03/2018 - 08/2019] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Rear No. 2 Seat	-	-
*1	BATTERY SERVICE HOLE COVER	*2	REAR NO. 4 FLOOR BOARD

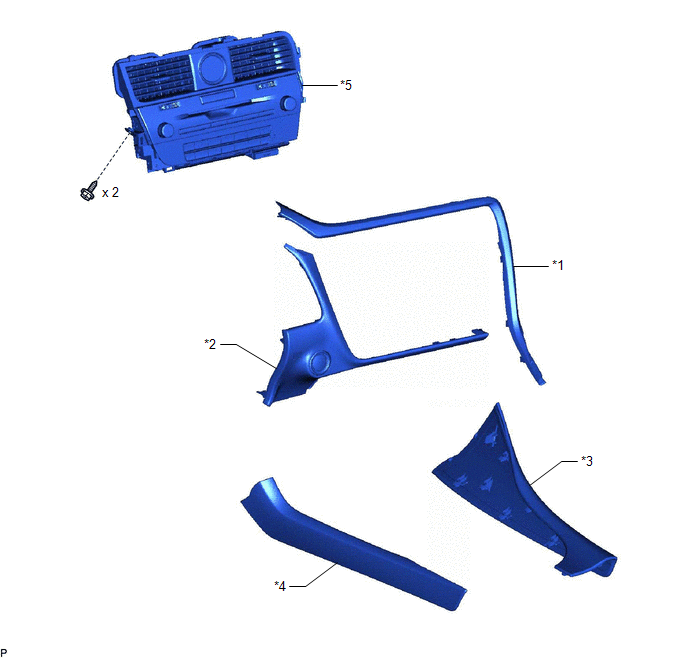

Fig 3: Navigation Receiver Replacement Components [03/2018 - 08/2019] (3 Of 4)

*1	INSTRUMENT CLUSTER FINISH PANEL ORNAMENT	*2	LOWER INSTRUMENT FINISH PANEL SUB
*3	LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL	*4	LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
*5	RADIO RECEIVER ASSEMBLY WITH REGISTER	-	-

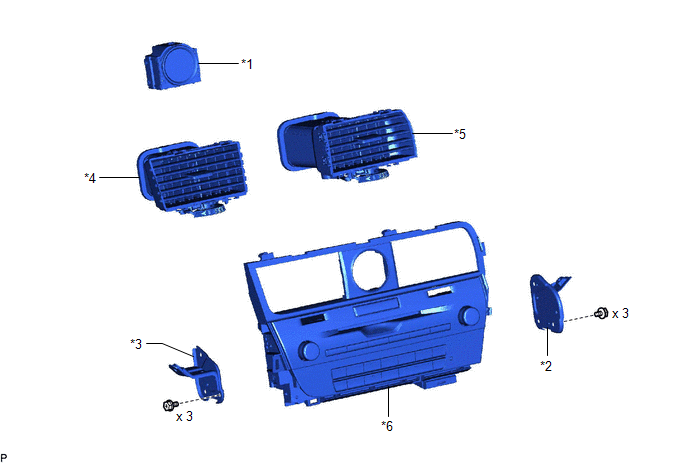

Fig 4: Navigation Receiver Replacement Components [03/2018 - 08/2019] (4 Of 4)

*1	CLOCK ASSEMBLY	*2	NO. 1 RADIO BRACKET
*3	NO. 2 RADIO BRACKET	*4	NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
*5	NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY	*6	RADIO RECEIVER ASSEMBLY
