Power Source Mode does not Change to ON (IG and ACC) [03/2018 - ]: Wiring Diagram

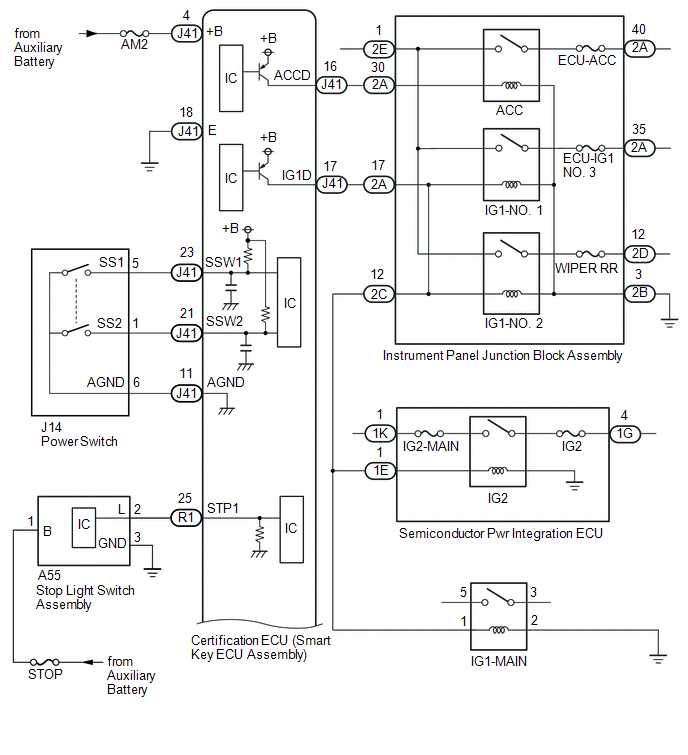

GTY684690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

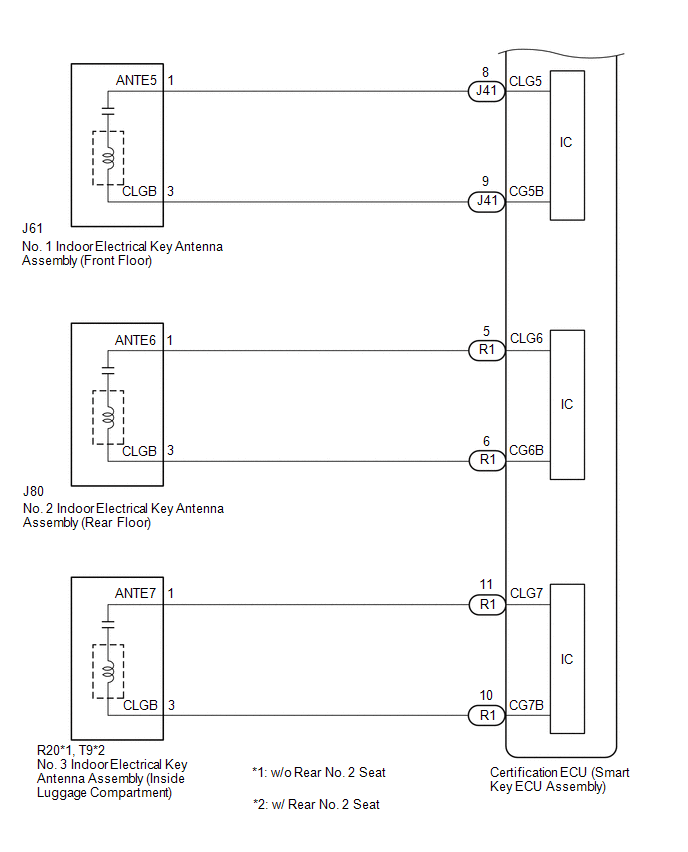

GTY784031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
