System Diagram [08/2019 - ]

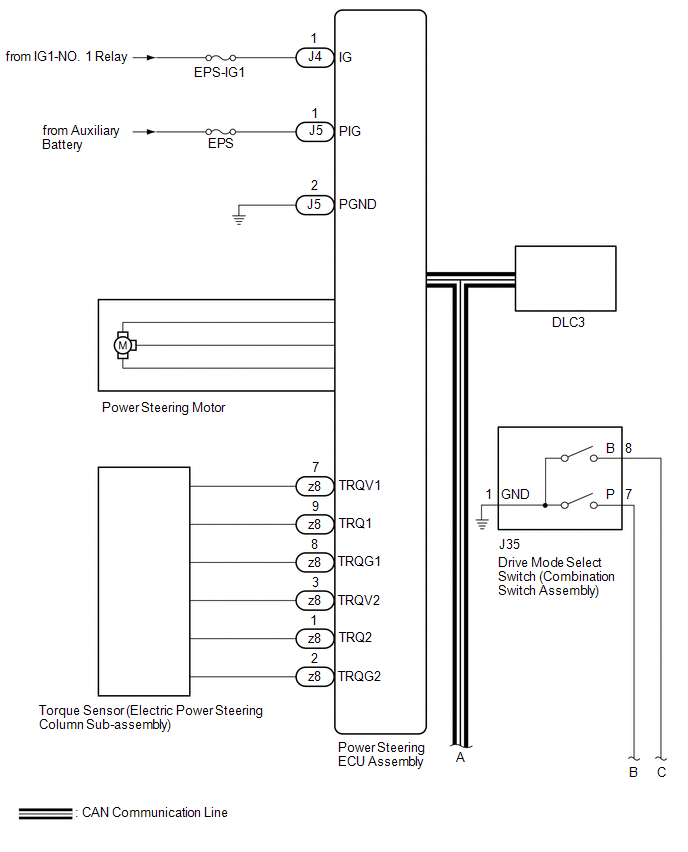

Fig 1: Power Steering System Wiring Diagram [08/2019 - ] (1 Of 2)
GTY1086132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

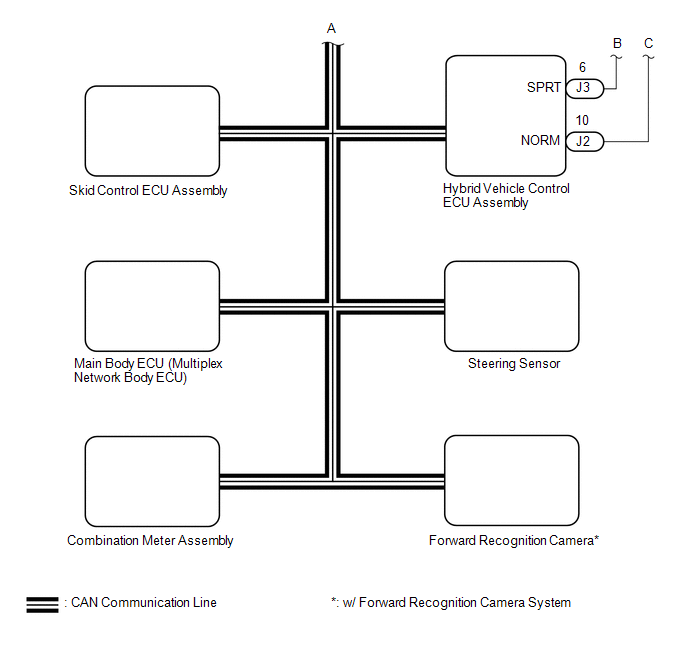

Fig 2: Power Steering System Wiring Diagram [08/2019 - ] (2 Of 2)
GTY957139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
