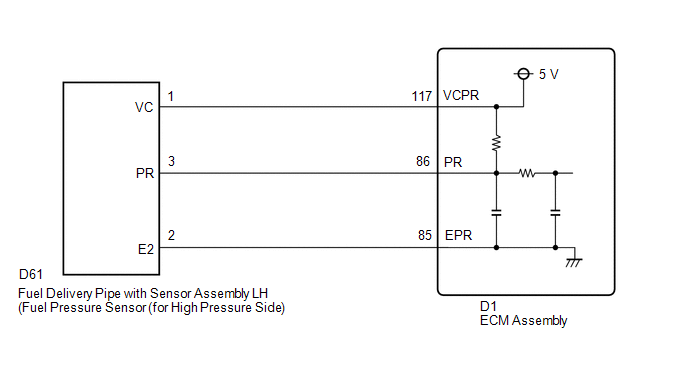

DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input; DTC P0193: Fuel Rail Pressure Sensor Circuit High Input [10/2015 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
