Parts Location [08/2021 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
| *A | w/ Power Back Door System | - | - |
| *1 | BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *4 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH) |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH) | *8 | REAR DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *9 | REAR DOOR LOCK WITH MOTOR ASSEMBLY LH | *10 | MULTIPLEX NETWORK DOOR ECU |
| *11 | KICK DOOR CONTROL SENSOR | *12 | DOOR CONTROL SWITCH |

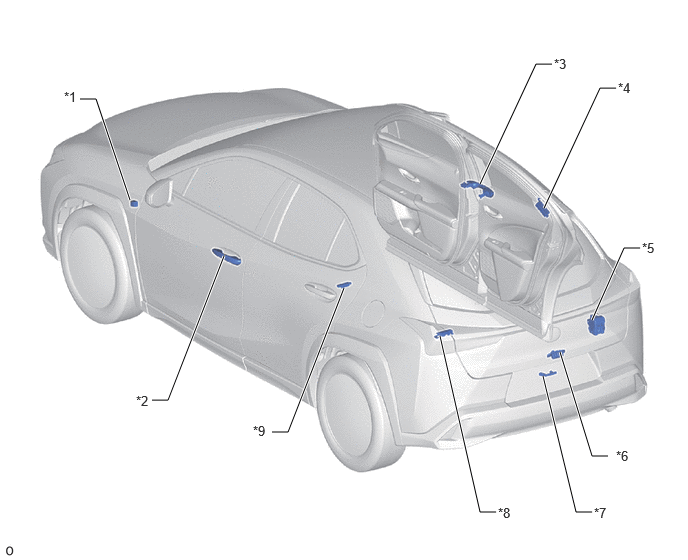

| *1 | WIRELESS DOOR LOCK BUZZER | *2 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
| *3 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH - ELECTRICAL KEY ANTENNA - LOCK SENSOR - UNLOCK SENSOR |
*4 | ELECTRICAL KEY AND TPMS RECEIVER ASSEMBLY |
| *5 | NO. 3 RELAY BLOCK - AM2 FUSE |
*6 | BACK DOOR OPENER SWITCH ASSEMBLY |
| *7 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) | *8 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE COMPARTMENT) |
| *9 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | - | - |
