System Diagram [10/2018 - 07/2022]

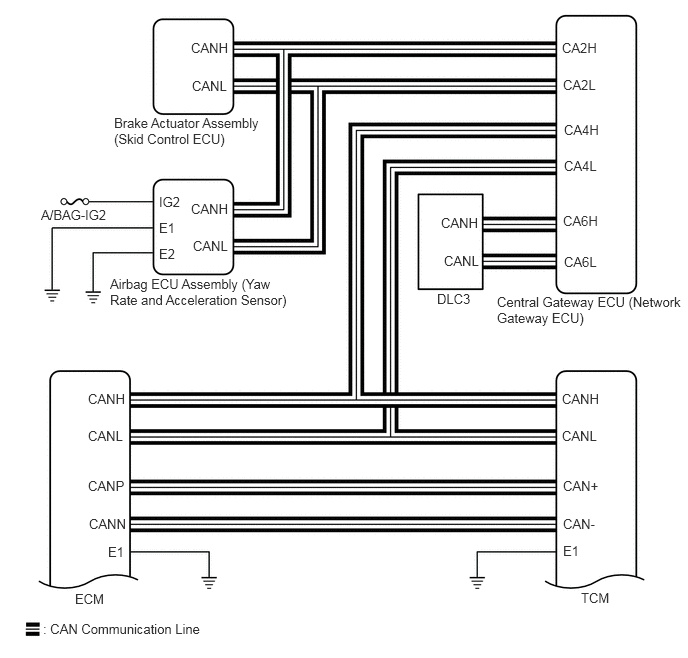

Fig 1: Continuously Variable Transaxle System Diagram (1 Of 5)
GTY780828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

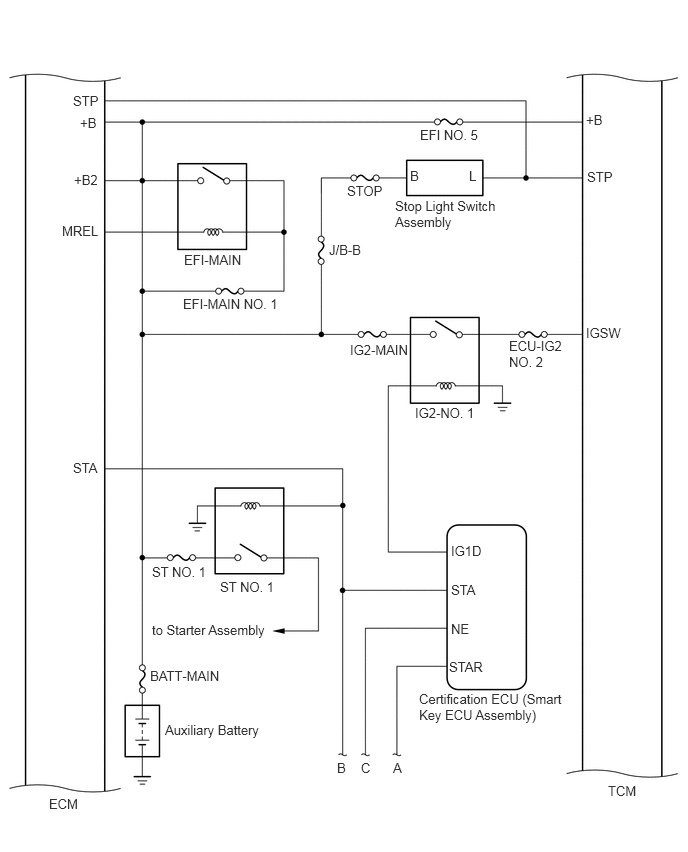

Fig 2: Continuously Variable Transaxle System Diagram (2 Of 5)
GTY775026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

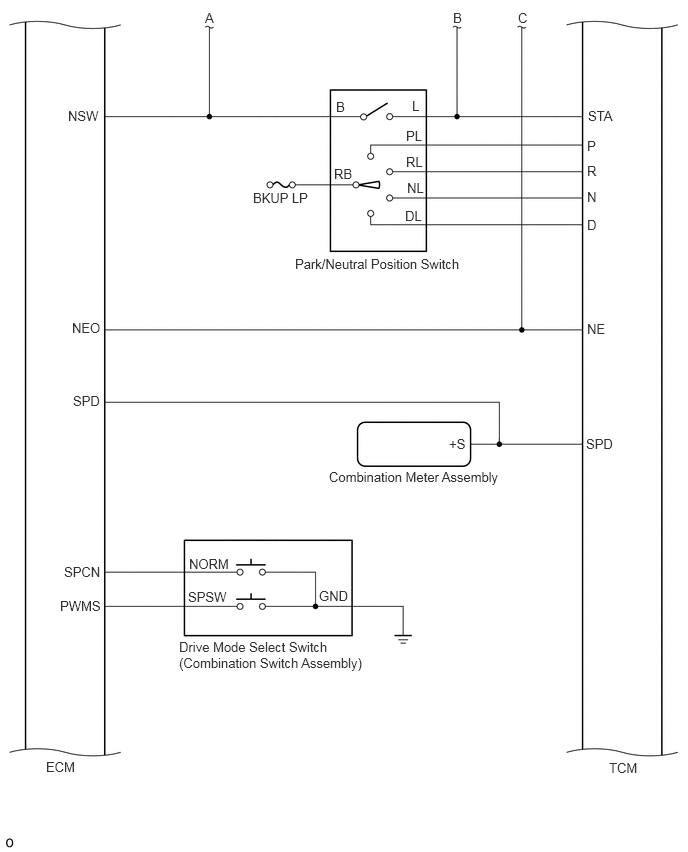

Fig 3: Continuously Variable Transaxle System Diagram (3 Of 5)
GTY820387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

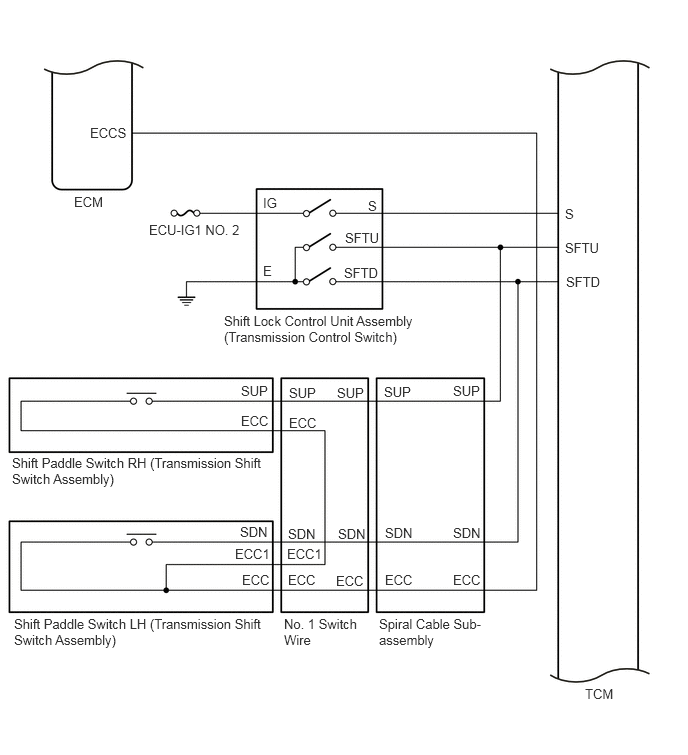

Fig 4: Continuously Variable Transaxle System Diagram (4 Of 5)
GTY784647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

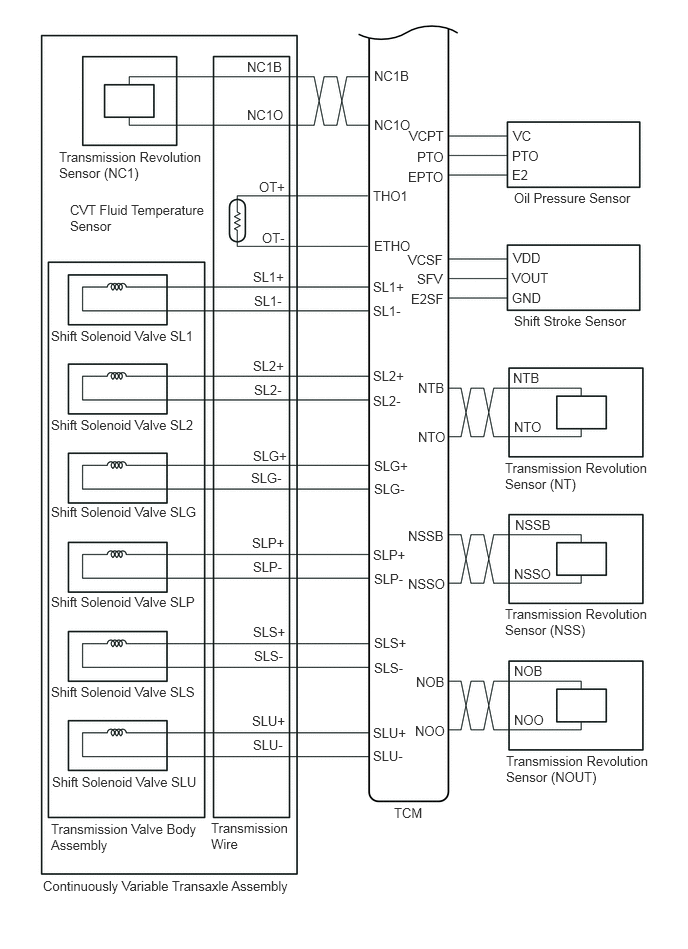

Fig 5: Continuously Variable Transaxle System Diagram (5 Of 5)
GTY780835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
