Terminals Of Ecu [10/2018 - 07/2022]

  1. TCM

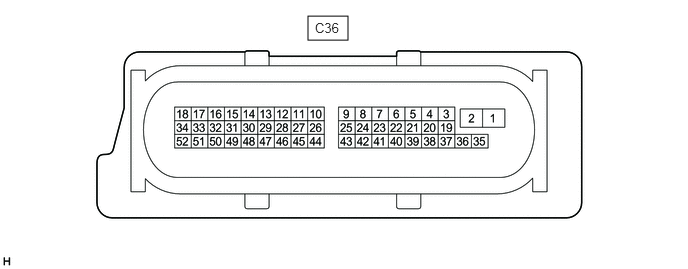

    Fig 1: TCM Connector End View
    GTY796207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    The standard voltage and resistance between each pair of TCM terminals is shown in the table below.

    The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard voltage or resistance for that pair of terminals shown in the "Specified Condition" column.

    Use the illustration above as a reference for the TCM terminals.

    Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
    C36-1 (+B) - C36-2 (E1) R - W-B Power source of TCM Engine switch on (IG) 11 to 14 V
    C36-2 (E1) - Body ground W-B - Body ground Ground Always Below 1 Ω
    C36-4 (SLS+) - C36-3 (SLS-) W - L Shift solenoid valve SLS signal Engine idling Pulse generation
    C36-6 (SLU+) - C36-5 (SLU-) G - GR Shift solenoid valve SLU signal Lock-up turned from OFF to ON Pulse generation
    C36-7 (NSSO) - C36-2 (E1) W - W-B Transmission revolution sensor (NSS) signal Vehicle being driven with shift lever in D Pulse generation
    C36-8 (NC1O) - C36-2 (E1) V - W-B Transmission revolution sensor (NC1) signal Vehicle being driven in gear mode Pulse generation
    C36-9 (NTO) - C36-2 (E1) L - W-B Transmission revolution sensor (NT) signal Vehicle being driven with shift lever in D Pulse generation
    C36-10 (NOO) - C36-2 (E1) GR - W-B Transmission revolution sensor (NOUT) signal Vehicle being driven with shift lever in D Pulse generation
    C36-13 (SFTD) - C36-2 (E1) L - W-B Down-shift switch signal
    • Engine switch on (IG)
    • Shift lever in M
    		 11 to 14 V
    • Engine switch on (IG)
    • Shift lever held in "-"
    		 Below 1 V
    C36-14 (SFTU) - C36-2 (E1) G - W-B Up-shift switch signal
    • Engine switch on (IG)
    • Shift lever in M
    		 11 to 14 V
    • Engine switch on (IG)
    • Shift lever held in "+"
    		 Below 1 V
    C36-15 (CANH) - C36-2 (E1) R - W-B CAN communication line Engine switch on (IG) Pulse generation
    C36-16 (CANL) - C36-2 (E1) W - W-B CAN communication line Engine switch on (IG) Pulse generation
    C36-17 (CAN-) - C36-2 (E1) P - W-B CAN communication line to ECM Engine switch on (IG) Pulse generation
    C36-18 (CAN+) - C36-2 (E1) V - W-B CAN communication line to ECM Engine switch on (IG) Pulse generation
    C36-19 (SL2+) - C36-20 (SL2-) SB - R Shift solenoid valve SL2 signal Vehicle being driven in belt mode Pulse generation
    C36-21 (SLG+) - C36-22 (SLG-) L - V Shift solenoid valve SLG signal
    • Vehicle being driven in gear mode
    • Shift lever in P
    		 Pulse generation
    C36-23 (NSSB) - C36-2 (E1) R - W-B Power source of transmission revolution sensor (NSS) Engine switch on (IG) 11 to 14 V
    C36-24 (NC1B) - C36-2 (E1) P - W-B Power source of transmission revolution sensor (NC1) Engine switch on (IG) 11 to 14 V
    C36-25 (NTB) - C36-2 (E1) G - W-B Power source of transmission revolution sensor (NT) Engine switch on (IG) 11 to 14 V
    C36-26 (NOB) - C36-2 (E1) P - W-B Power source of transmission revolution sensor (NOUT) Engine switch on (IG) 11 to 14 V
    C36-28 (STA) - C36-2 (E1) SB - W-B Starter assembly signal Cranking 6.0 V or higher
    C36-29 (P) - C36-2 (E1) B - W-B P position switch signal
    • Engine switch on (IG)
    • Shift lever in P
    		 11 to 14 V
    • Engine switch on (IG)
    • Shift lever not in P
    		 Below 1 V
    C36-30 (S) - C36-2 (E1) W - W-B M position switch signal
    • Engine switch on (IG)
    • Shift lever in M
    		 11 to 14 V
    • Engine switch on (IG)
    • Shift lever not in M
    		 Below 1 V
    C36-31 (D) - C36-2 (E1) P - W-B D position switch signal
    • Engine switch on (IG)
    • Shift lever in D
    		 11 to 14 V
    • Engine switch on (IG)
    • Shift lever not in D
    		 Below 1 V
    C36-32 (N) - C36-2 (E1) L - W-B N position switch signal
    • Engine switch on (IG)
    • Shift lever in N
    		 11 to 14 V
    • Engine switch on (IG)
    • Shift lever not in N
    		 Below 1 V
    C36-33 (R) - C36-2 (E1) LG - W-B R position switch signal
    • Engine switch on (IG)
    • Shift lever in R
    		 11 to 14 V
    • Engine switch on (IG)
    • Shift lever not in R
    		 Below 1 V
    C36-34 (STP) - C36-2 (E1) GR - W-B Stop light switch assembly signal Brake pedal depressed 7.5 to 14 V
    Brake pedal released Below 1.5 V
    C36-38 (SL1+) - C36-37 (SL1-) P - LG Shift solenoid valve SL1 signal Vehicle being driven in gear mode Pulse generation
    C36-40 (SLP+) - C36-39 (SLP-) B - Y Shift solenoid valve SLP signal Engine idling Pulse generation
    C36-41 (IGSW) - C36-2 (E1) G - W-B Engine switch signal Engine switch on (IG) 11 to 14 V
    C36-42 (SPD) - C36-2 (E1) W - W-B Vehicle speed signal from combination meter assembly Vehicle being driven at 20 km/h (12 mph) Pulse generation
    C36-43 (NE) - C36-2 (E1) LG - W-B Crankshaft position sensor signal from ECM Engine idling with warm engine Pulse generation
    C36-45 (VCSF) - C36-44 (E2SF) B - R Power source of shift stroke sensor Engine switch on (IG) 4.5 to 5.5 V
    C36-46 (SFV) - C36-44 (E2SF) G - R Shift stroke sensor signal Synchronizer engaged 1.19 to 1.29 V
    Synchronizer not engaged 3.64 to 3.74 V
    C36-49 (VCPT) - C36-48 (EPTO) SB - V Power source of oil pressure sensor Engine switch on (IG) 4.5 to 5.5 V
    C36-50 (PTO) - C36-48 (EPTO) G - V Oil pressure sensor signal Engine idling with shift lever in P 0.8 to 1.2 V
    C36-51 (THO1) - C36-52 (ETHO) B - SB CVT fluid temperature sensor signal CVT fluid temperature: 60 to 120°C (140 to 248°F) 0.2 to 1.0 V
  2. ECM

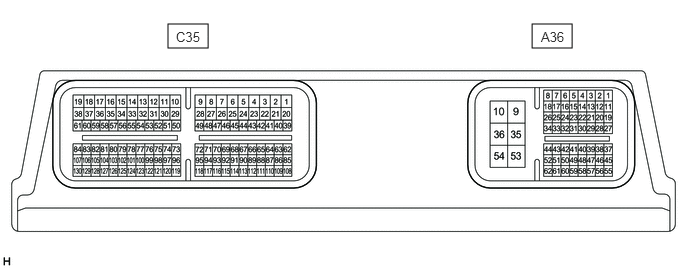

    Fig 2: ECM Connector End View
    GTY784097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    The standard voltage and resistance between each pair of ECM terminals is shown in the table below.

    The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard voltage or resistance for that pair of terminals shown in the "Specified Condition" column.

    Use the illustration above as a reference for the ECM terminals.

    Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
    A36-7 (CANP) - A36-10 (E1) G - W-B CAN communication line to TCM Engine switch on (IG) Pulse generation
    A36-9 (+B) - A36-10 (E1) R - W-B Power source of ECM Engine switch on (IG) 11 to 14 V
    A36-16 (NEO) - A36-10 (E1) L - W-B Crankshaft position sensor signal to TCM Engine idling with warm engine Pulse generation
    A36-17 (CANN) - A36-10 (E1) W - W-B CAN communication line to TCM Engine switch on (IG) Pulse generation
    A36-28 (ECCS) - A36-10 (E1) BR - W-B Shift paddle switch ground Always Below 1 Ω
    A36-30 (STA) - A36-10 (E1) LG - W-B Starter assembly signal Cranking 6.0 V or higher
    A36-31 (PWMS) - A36-10 (E1) B - W-B Drive mode select switch signal
    • Engine switch on (IG)
    • Drive mode switch being turned and held at Sport position
    		 Below 1.5 V
    • Engine switch on (IG)
    • Drive mode select switch not turned
    		 11 to 14 V
    A36-35 (+B2) - A36-10 (E1) R - W-B Power source of ECM Engine switch on (IG) 11 to 14 V
