Parts Location [04/2013 - 09/2022]: Illustration

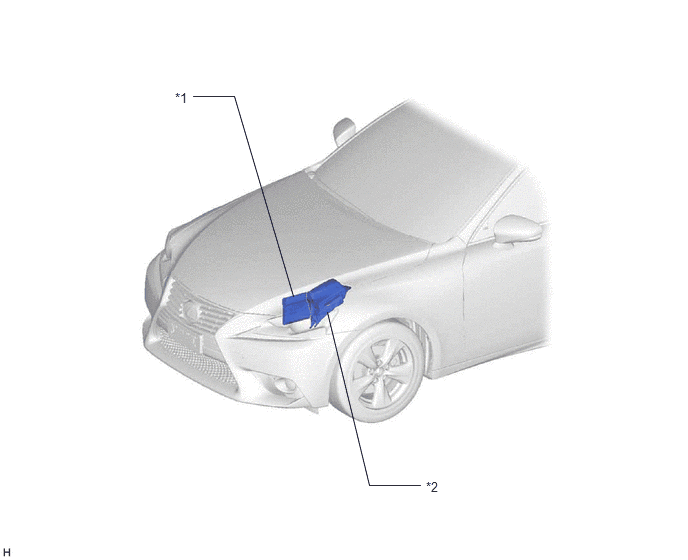

Fig 1: Steering Lock System Components Location (1 Of 2) [04/2013 - 09/2022]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

ECM

*2

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - IG2 RELAY - IG2-MAIN FUSE

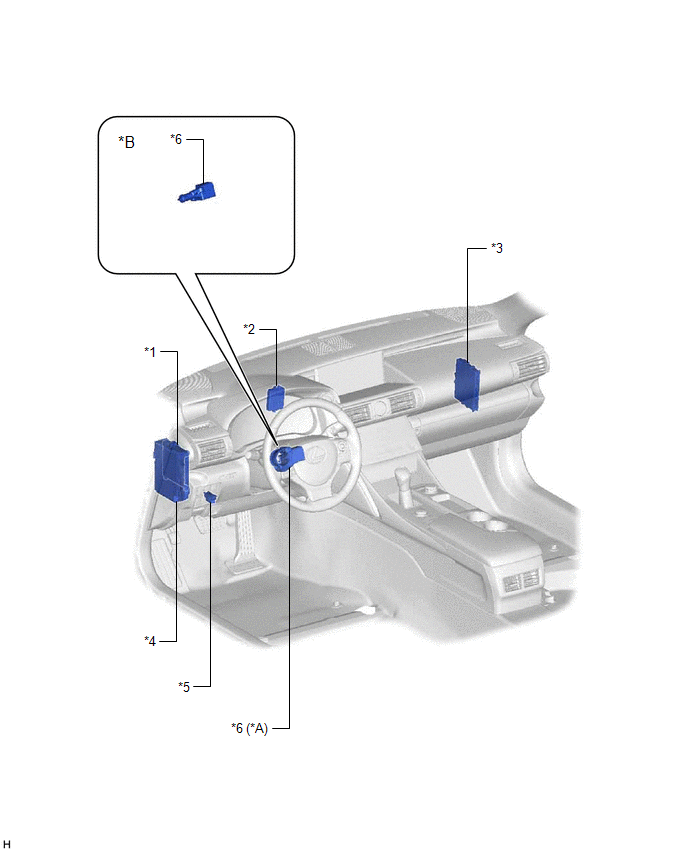

Fig 1: Steering Lock System Components Location (2 Of 2) [04/2013 - 09/2022]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Manual Tilt and Manual Telescopic Steering Column	*B	for Power Tilt and Power Telescopic Steering Column
*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	ID CODE BOX (IMMOBILISER CODE ECU)
*3	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*4	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IGN NO. 2 FUSE - STRG LOCK FUSE
*5	DLC3	*6	STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY)
