System Diagram [10/2023 - ]

WARNING: This page is about a different car, the 2024 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.

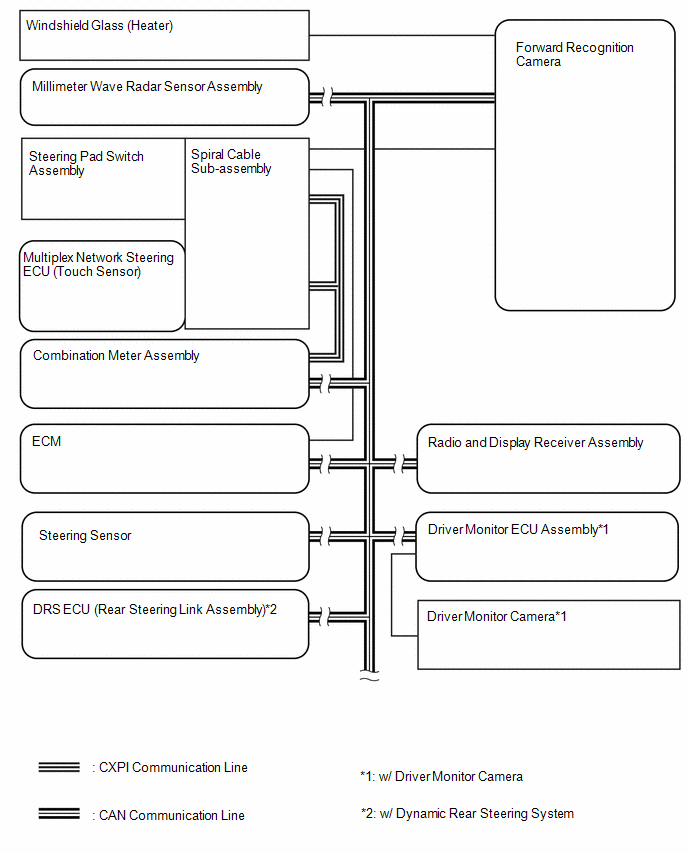

GTY1231699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

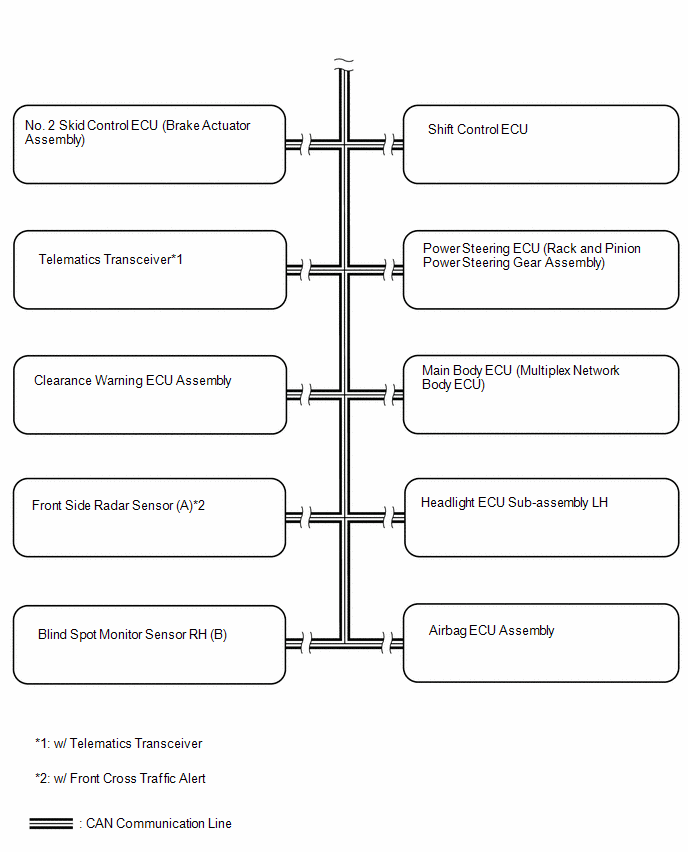

GTY1236662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Local BUS Circuit

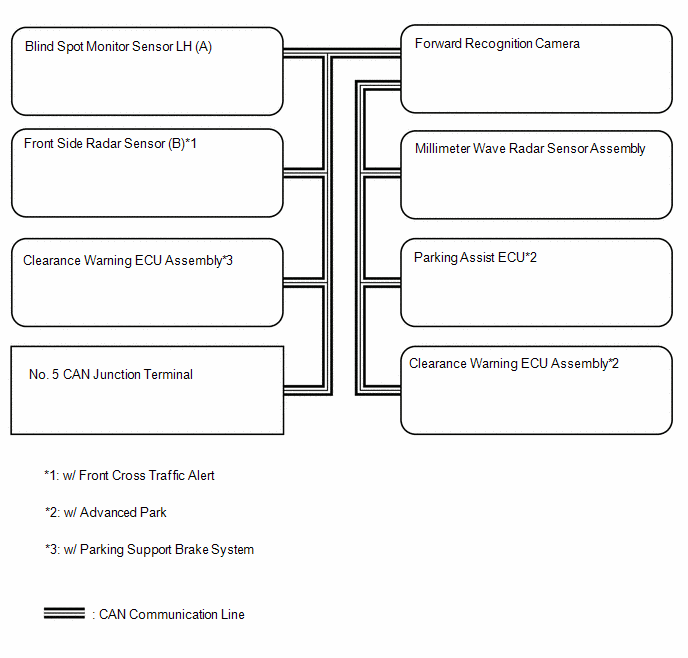

    GTY1230501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
