Removal [12/2017 - ]: Procedure

Refer to PRECAUTION [12/2017 - ]

Refer to PROCEDURE - Step 2

Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020] , or refer to REMOVAL [10/2020 - 10/2022] , or refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

1. Remove the 2 nuts and disconnect the No. 2 parking release cable bracket sub-assembly from the rear engine mounting member.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 3 nuts and rear engine mounting member.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 4

Refer to PROCEDURE - Step 25 [12/2017 - 09/2018] , or refer to PROCEDURE - Step 25 [09/2018 - 09/2019] , or refer to PROCEDURE - Step 25 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 25 [10/2020 - 10/2022] , or refer to PROCEDURE - Step 25 [10/2022 - 10/2023] , or refer to PROCEDURE - Step 25 [10/2023 - ]

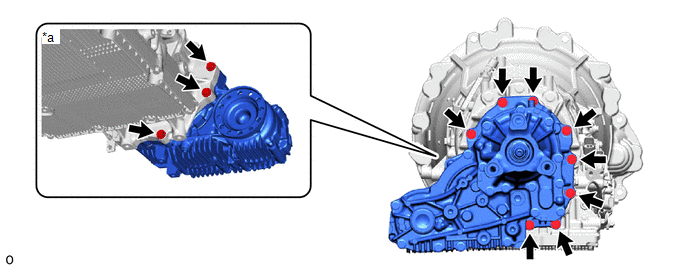

1. Remove the 11 bolts and transfer assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   for Automatic Transmission Assembly Side

   -

   -

   NOTE:

   • Be careful not damage the transfer front case oil seal.
   • Be careful not to drop the transfer assembly.
   • Make sure there are no oil leaks.
