Navigation Receiver Assembly Power Source Circuit [09/2014 - 11/2017]: Wiring Diagram

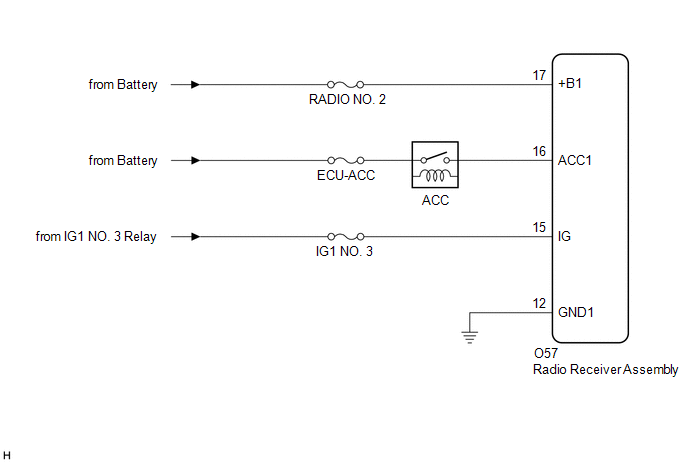

GTY506009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
