Components [03/2019 - ]
Fig 1: Air Cooled Oil Cooler Replacement Components With Torque Specifications [03/2019 - ] (1 Of 2)
| *1 | FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY | *2 | NO. 2 ENGINE UNDER COVER |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

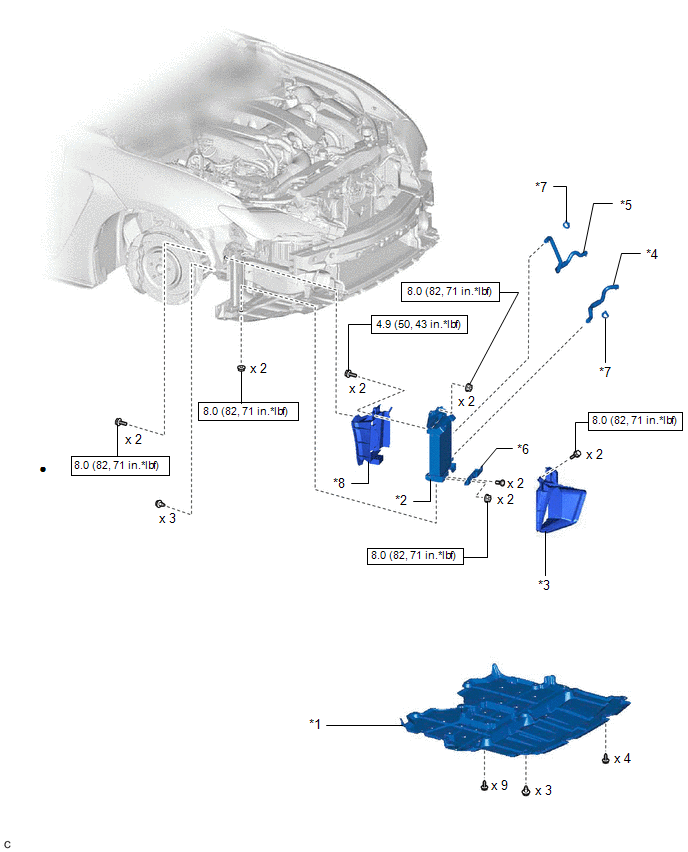

Fig 2: Air Cooled Oil Cooler Replacement Components With Torque Specifications [03/2019 - ] (2 Of 2)
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | OIL COOLER ASSEMBLY |
| *3 | TRANSMISSION OIL COOLER AIR DUCT | *4 | NO. 5 TRANSMISSION OIL COOLER HOSE |
| *5 | NO. 6 TRANSMISSION OIL COOLER HOSE | *6 | TRANSMISSION OIL COOLER BRACKET |
| *7 | HOSE CLAMP | *8 | OUTLET TRANSMISSION OIL COOLER AIR DUCT |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
