Components [09/2014 - 03/2019]

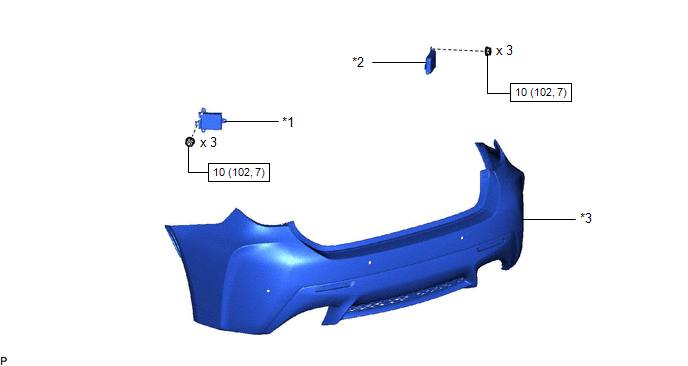

Fig 1: Blind Spot Monitor Sensor Replacement Components With Torque Specifications [09/2014 - 03/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BLIND SPOT MONITOR SENSOR LH
*2
BLIND SPOT MONITOR SENSOR RH
*3
REAR BUMPER ASSEMBLY
-
-
N.m (kgf/cm, ft.lbf): Specified torque
-
-
