System Diagram [09/2015 - ]

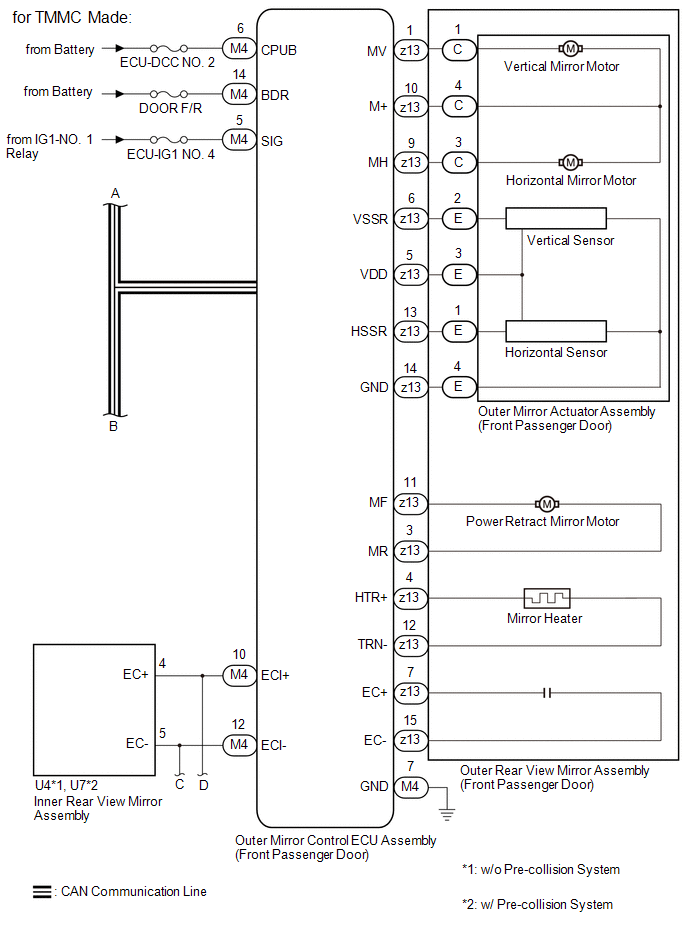

Fig 1: Power Mirror Control System (W/ Memory) Diagram (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

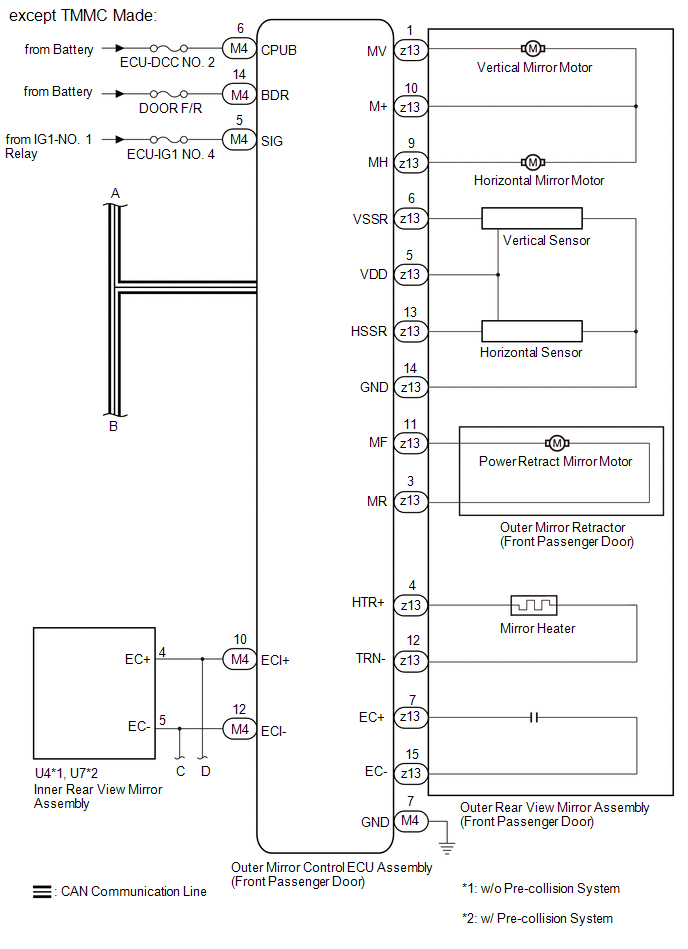

Fig 2: Power Mirror Control System (W/ Memory) Diagram (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

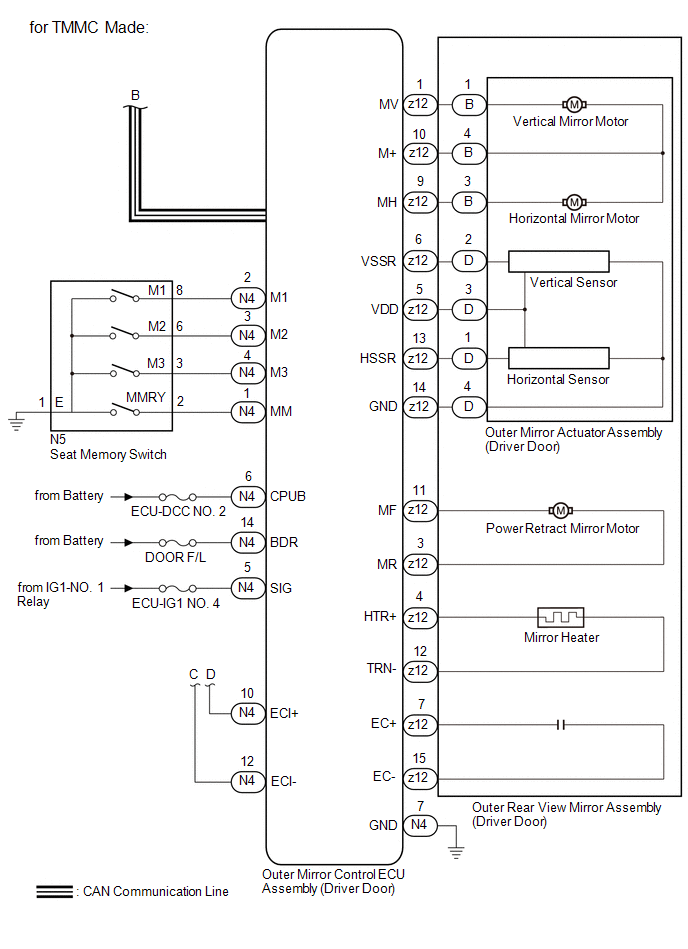

Fig 3: Power Mirror Control System (W/ Memory) Diagram (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

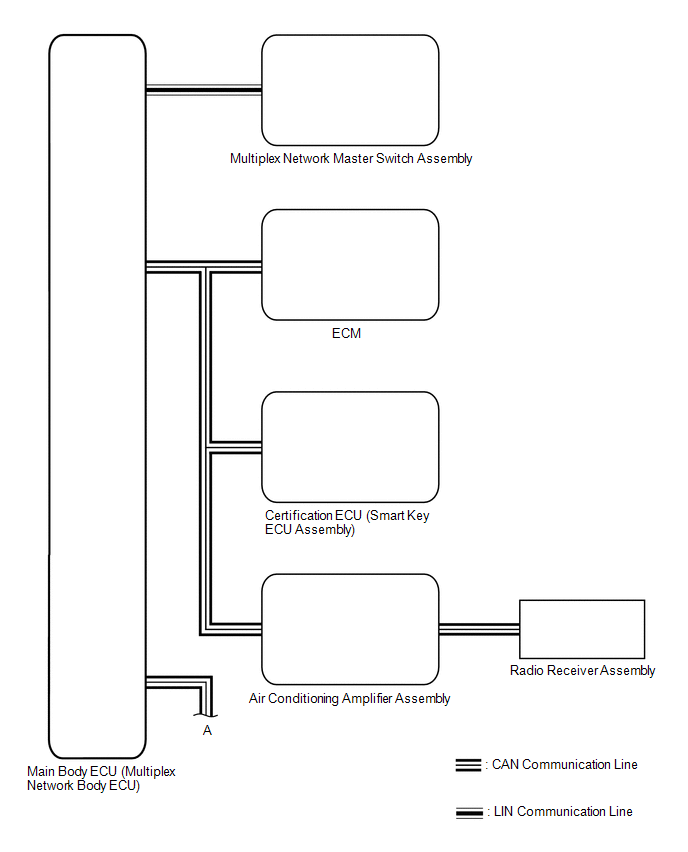

Fig 4: Power Mirror Control System (W/ Memory) Diagram (4 Of 5)

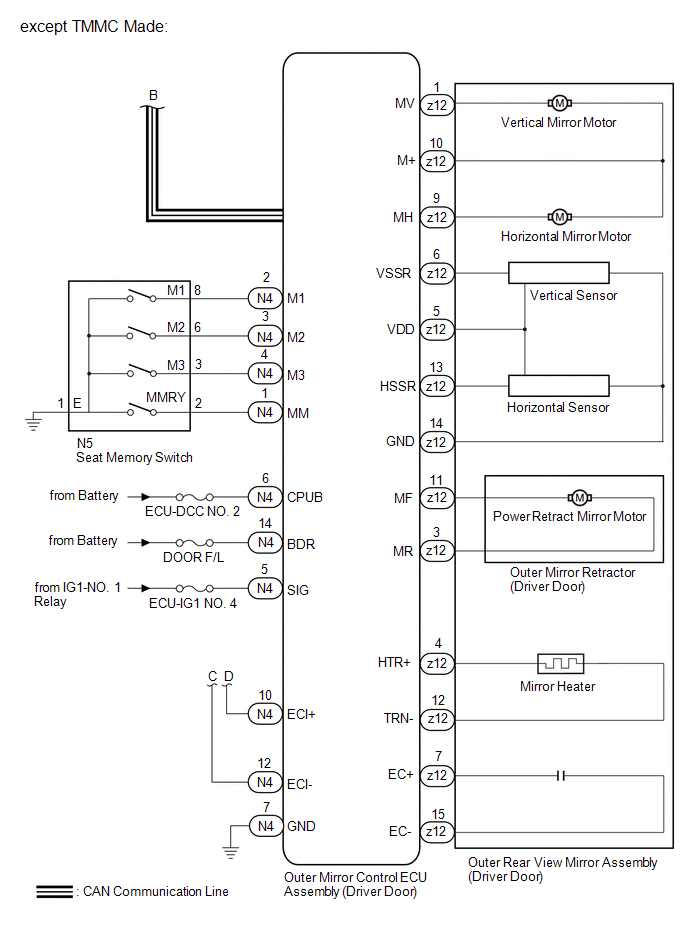

Fig 5: Power Mirror Control System (W/ Memory) Diagram (5 Of 5)

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Air Conditioning Amplifier Assembly	Main Body ECU (Multiplex Network Body ECU)	Mirror heater drive request signal	CAN
Main Body ECU (Multiplex Network Body ECU)	Outer Mirror Control ECU Assembly	IG signal ACC signal Multiplex network master switch assembly operation signal Mirror position request signal (seat position memory and reactivation function) Mirror position request signal (reverse shift-linked function) Mirror heater drive request signal	CAN
Outer Mirror Control ECU Assembly	Main Body ECU (Multiplex Network Body ECU)	Outer mirror state signal Seat memory switch signal	CAN
Certification ECU (Smart Key ECU Assembly)	Main Body ECU (Multiplex Network Body ECU)	Key ID signal	CAN
ECM	Main Body ECU (Multiplex Network Body ECU)	Reverse signal	CAN
Radio Receiver Assembly	Air Conditioning Amplifier Assembly	Mirror heater switch (rear window defogger switch) operation signal	LIN
Multiplex Network Master Switch Assembly	Main Body ECU (Multiplex Network Body ECU)	Outer mirror switch signal	LIN
