Components [09/2015 - 12/2017]
Fig 1: Steering Column Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (1 Of 6)
| Callout | Description | Callout | Description |
| *1 | STEERING WHEEL ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 2: Steering Column Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (2 Of 6)
| Callout | Description | Callout | Description |
| *1 | LOWER STEERING COLUMN COVER | *2 | UPPER STEERING COLUMN COVER |
| *3 | TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

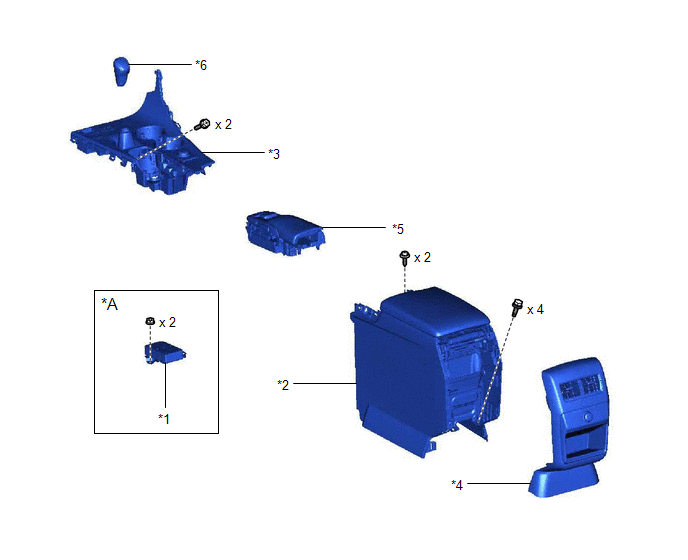

| *A | w/ Manual (SOS) Switch | - | - |
| *1 | BACK-UP BATTERY WITH BRACKET | *2 | CONSOLE BOX ASSEMBLY |
| *3 | CONSOLE PANEL SUB-ASSEMBLY | *4 | CONSOLE REAR END PANEL SUB-ASSEMBLY |
| *5 | REMOTE TOUCH ASSEMBLY | *6 | SHIFT LEVER KNOB SUB-ASSEMBLY |
Fig 4: Steering Column Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (4 Of 6)
| Callout | Description | Callout | Description |
| *1 | NO. 4 AIR DUCT SUB-ASSEMBLY | *2 | FRONT NO. 1 CONSOLE BOX INSERT |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
Fig 5: Steering Column Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (5 Of 6)
| Callout | Description | Callout | Description |
| *1 | STEERING COLUMN ASSEMBLY | *2 | STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *3 | STOP LIGHT SWITCH ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | - | - |
Fig 6: Steering Column Assembly Replacement Components With Torque Specifications [09/2015 - 12/2017] (6 Of 6)
| Callout | Description | Callout | Description |
| *1 | ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | ELECTRIC POWER STEERING MOTOR SHAFT DAMPER | *4 | STEERING LOCK ACTUATOR OR UPPER BRACKET ASSEMBLY |
| *5 | MULTIPLEX TILT AND TELESCOPIC ECU | *6 | STEERING LOCK SET BOLT |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Grease | - | - |
