System Diagram [07/2022 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus UX 250h, 2023 Lexus UX 250h, 2022 Lexus UX 250h, 2021 Lexus UX 250h, and 2020 Lexus UX 250h. However, it is still accessible from the selected car via links, so may be relevant.
  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function, HV Model)

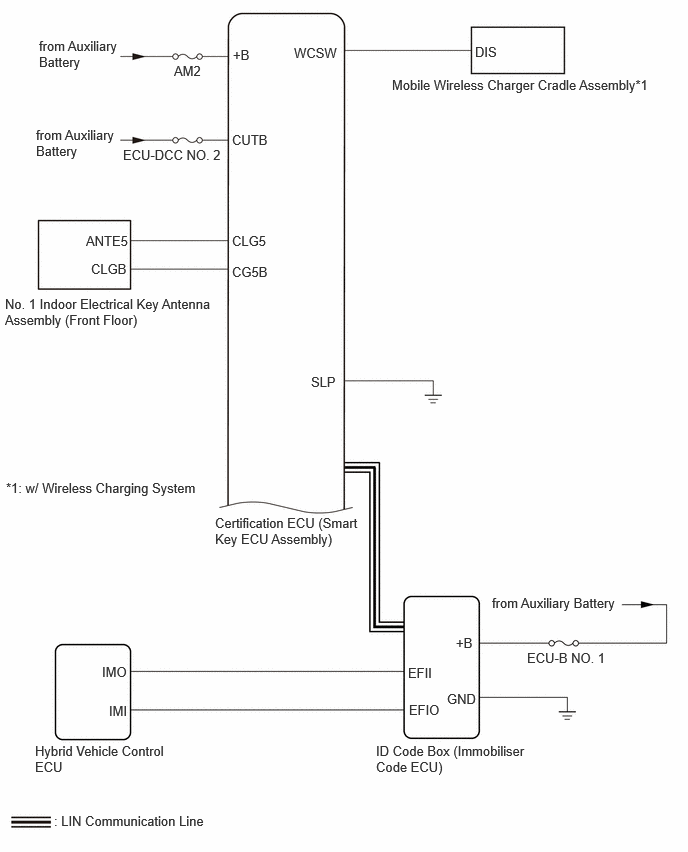

    GTY1136469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1087722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

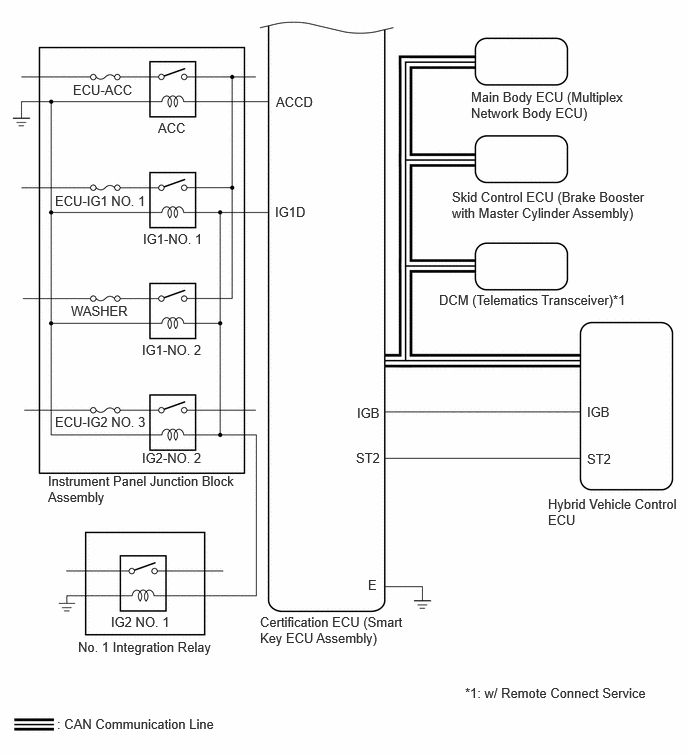

    GTY1134192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function, HV Model)

    Refer to SYSTEM DIAGRAM [07/2022 - ]
