DTC C1297: Steering Angle Sensor [08/2020 - ]: Wiring Diagram

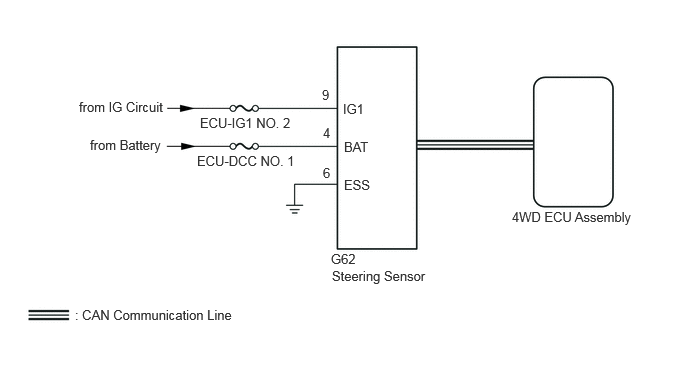

GTY958530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
