Operation Check [08/2019 - 08/2022]

OPERATION DESCRIPTION

NOTE:

Make sure that the smart access system with push-button start (for Start Function) has not been canceled before performing this inspection.

Refer to CUSTOMIZE PARAMETERS [08/2019 - ]

Push-button start function:

When the electrical key transmitter sub-assembly is in a detection area inside the vehicle and the brake pedal is depressed, the engine is started by pressing the engine switch.
When the electrical key transmitter sub-assembly is in a detection area inside the vehicle and the brake pedal is not depressed, the power source mode is changed by pressing the engine switch. The power source mode changes in the following order every time the engine switch is pressed: off → on (ACC) → on (IG) → off.

After getting into the vehicle while carrying the electrical key transmitter sub-assembly when the engine switch is off, if the engine switch is pressed while not depressing the brake pedal, the power source mode changes to on (ACC) and "ACCESSORY" is displayed on the multi-information display.

Fig 1: "ACCESSORY" Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	"ACCESSORY" Display

After getting into the vehicle while carrying the electrical key transmitter sub-assembly when the engine switch is off, if the engine switch is pressed 2 times without depressing the brake pedal, the power source mode changes to on (IG) and "IGNITION ON" is displayed on the multi-information display.

Fig 2: "IGNITION ON" Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	"IGNITION ON" Display

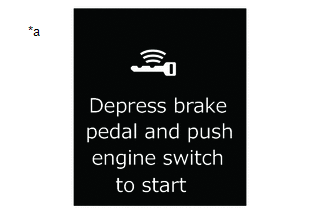

After getting into the vehicle while carrying the electrical key transmitter sub-assembly when the engine switch is off, if the brake pedal is depressed while the shift lever is in P, the entry warning light is displayed on the multi-information display.

Fig 3: DEPRESSED BRAKE PEDAL DISPLAYED

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Entry Warning Light Display

The engine will start if the engine switch is pressed when the entry warning light is displayed.

Changing the power source mode when the electrical key transmitter sub-assembly does not operate correctly due to wave interference or transmitter battery depletion:

Unlock the door using the built-in mechanical key and get into the vehicle while carrying the electrical key transmitter sub-assembly.

Fig 4: "IGNITION ON" Display

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	"IGNITION ON" Display

While depressing the brake pedal and facing the electrical key transmitter sub-assembly towards the engine switch, hold the electrical key transmitter sub-assembly near the engine switch.
A buzzer in the combination meter assembly will sound and the power source mode changes to on (IG) and "IGNITION ON" is displayed on the multi-information display.
Pressing the engine switch without depressing the brake pedal turns the power source mode from on (IG) to off.

Fig 5: DEPRESSING THE BRAKE PEDAL AND PUSH ENGINE SWITCH TO START DISPLAY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a Entry Warning Light Display

Starting the engine when the electrical key transmitter sub-assembly does not operate correctly due to wave interference or transmitter battery depletion:
1. Unlock the door using the built-in mechanical key and get into the vehicle while carrying the electrical key transmitter sub-assembly.
2. While depressing the brake pedal with the shift lever in P and facing the electrical key transmitter sub-assembly towards the engine switch, hold the electrical key transmitter sub-assembly near the engine switch.
3. A buzzer in the combination meter assembly will sound, the power source mode changes to on (IG) and the entry warning light will be displayed on the multi-information display.
4. Press the engine switch with the brake pedal depressed to start the engine.

CHECK PUSH-BUTTON START FUNCTION

Fig 6: CHECK PUSH-BUTTON START FUNCTION

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Entry Warning Light Display

Check the push-button start function:

Get into the vehicle while carrying the electrical key transmitter sub-assembly with the engine switch off. With the shift lever in P, check that the entry warning light is displayed when the brake pedal is depressed. Check that the engine starts when the engine switch is pressed after the entry warning light is displayed on the multi-information display.
While the brake pedal is released and the electrical key transmitter sub-assembly is being carried, check that the power source mode changes in the following order when the engine switch is pressed: off → on (ACC) → on (IG) → off.
HINT:

When the engine switch is pressed with the engine switch on (IG) and the shift lever not in P, the power source mode does not change to off, but changes to on (ACC).
With the shift lever in P, check that the steering lock operates when a door is opened. (w/ Steering Lock System)
HINT:

When the engine switch is pressed after the vehicle is stopped, the engine stops and all the power turns off. However, if the shift lever is not in P when the engine switch is pressed with the vehicle stopped, the power source mode does not change to off, but changes to on (ACC).

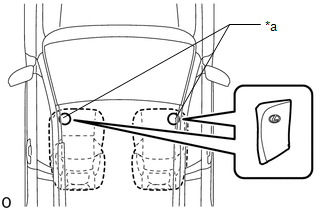

Check the push-button start function operation range for the front side. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the engine can be started.

NOTE:

Even if the electrical key transmitter sub-assembly is in a vehicle interior key detection area, the electrical key transmitter sub-assembly may not be properly detected if the electrical key transmitter sub-assembly is on the instrument panel, in the glove box or on the floor.

HINT:

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the shift lever.
Perform this inspection for both inspection points.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Inspection Point

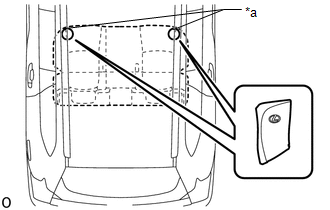

Check the push-button start function operation range for the rear side. Place the electrical key transmitter sub-assembly at either inspection point so that it is facing the direction shown in the illustration, and then check that the engine can be started.

NOTE:

HINT:

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the center of the rear seat.
Perform this inspection for both inspection points.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Inspection Point

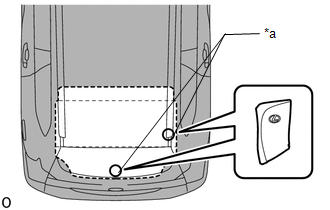

Inspect the push start operating range (luggage room). Place the electrical key transmitter sub-assembly on the luggage room floor at either inspection point so that it is facing in the direction shown in the illustration and check that the engine can be started.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Inspection Point

NOTE:

Even if the electrical key transmitter sub-assembly is within the vehicle interior detection area, the electrical key transmitter sub-assembly may not be properly detected if it is on the instrument panel, in the glove box or on the floor.

HINT:

Communication may not be possible if the electrical key transmitter sub-assembly is within 0.2 m (0.656 ft.) of the rear corners of the luggage room.
Perform the inspection for both inspection points.

CHECK TRANSMITTER BATTERY SAVING FUNCTION
1. Check the transmitter battery saving mode function:
  1. Press the unlock switch of the electrical key transmitter sub-assembly twice while pressing the lock switch and check that the electrical key transmitter sub-assembly LED blinks 4 times and enters transmitter battery saving mode.
  2. Check that the mart access system with push-button start does not operate while in transmitter battery saving mode.
    HINT:

    To cancel transmitter battery saving mode, press a switch of the electrical key transmitter sub-assembly.

CHECK POWER SOURCE MODE CHANGING FUNCTION

Check the engine switch.

Check that the power source mode changes according to the chart below.

Shift Position	Brake Pedal	Power Source Mode when Engine Switch Pressed
P	Released	Off → on (ACC) → on (IG) → off
P	Released	Engine running → off
P	Released	On (ACC)*1 → off
P	Depressed	Off → engine starts
P	Depressed	On (ACC) → engine starts
P	Depressed	On (IG) → engine starts
P	Depressed	Engine running → off
P	Depressed	On (ACC)*1 → off
N	Released	Off → on (ACC) → on (IG) (after power source mode changes to on (IG), power source mode changes between on (IG) and on (ACC) every time engine switch is pressed)
N	Released	Engine running → on (ACC)
N	Depressed	Off → engine starts*2
N	Depressed	On (ACC) → engine starts*2
N	Depressed	On (IG) → engine starts*2
N	Depressed	Engine running → on (ACC)
Not P or N	Released	Off → on (ACC) → on (IG) (after power source mode changes to on (IG), power source mode changes between on (IG) and on (ACC) every time engine switch is pressed)
Not P or N	Released	Engine running → on (ACC)
Not P or N	Depressed	Off → on (IG)
Not P or N	Depressed	On (ACC) → on (IG)
Not P or N	Depressed	Engine running → on (ACC)

HINT:

*1: This situation is only applicable when the power source mode has changed from on (IG) to on (ACC). However, this situation is not applicable when an emergency stop is performed by pressing and holding the engine switch for 2 seconds or more or by quickly pressing the engine switch 3 times or more.
*2: This situation is only applicable when the steering is unlocked.

CHECK POWER SOURCE MODE INDICATION

Fig 7: "ACCESSORY" Display

Fig 8: "IGNITION ON" Display

Fig 9: ENTRY WARNING LIGHT DISPLAY

*a	"ACCESSORY" Display

*a	"IGNITION ON" Display

*a	Entry Warning Light Display

Check the entry warning light.

MULTI-INFORMATION DISPLAY INSPECTION

Power Source Mode	Multi-information Display
Off (Excluding conditions in which the engine can be started)	Off
On (ACC) (Excluding conditions in which the engine can be started)	"ACCESSORY" displayed
On (IG) (Excluding conditions in which the engine can be started)	"IGNITION ON" displayed
Conditions in which engine can be started*1	Entry Warning Light displayed
Engine started	Off

HINT:

*1: Indicates the conditions in which the engine can be started by pressing the engine switch while either of the following conditions is met:

Condition 1
All of the following conditions are met:
- The power source mode was turned from on (IG) to on (ACC).
- Key verification is OK*2 or immobiliser is unset (engine switch is on (ACC) or on (IG)).
- The shift lever is in N and the steering is unlocked.
- The brake pedal is on.
Condition 2
All of the following conditions are met:
- The power source mode was not turned from on (IG) to on (ACC).
- Key verification is OK*2 or immobiliser is unset (engine switch is on (ACC) or on (IG)).
- The brake pedal is on.
- The shift lever is in P, or the shift lever is in N with the steering unlocked.

*2: When the electrical key transmitter sub-assembly is in the cabin, the ID code sent as a result of communication between the electrical key transmitter sub-assembly and certification ECU (smart key ECU assembly) and the ID code calculated by the certification ECU (smart key ECU assembly) are compared. If the ID codes match each other, the vehicle recognizes that the electrical key transmitter sub-assembly is in the cabin.
