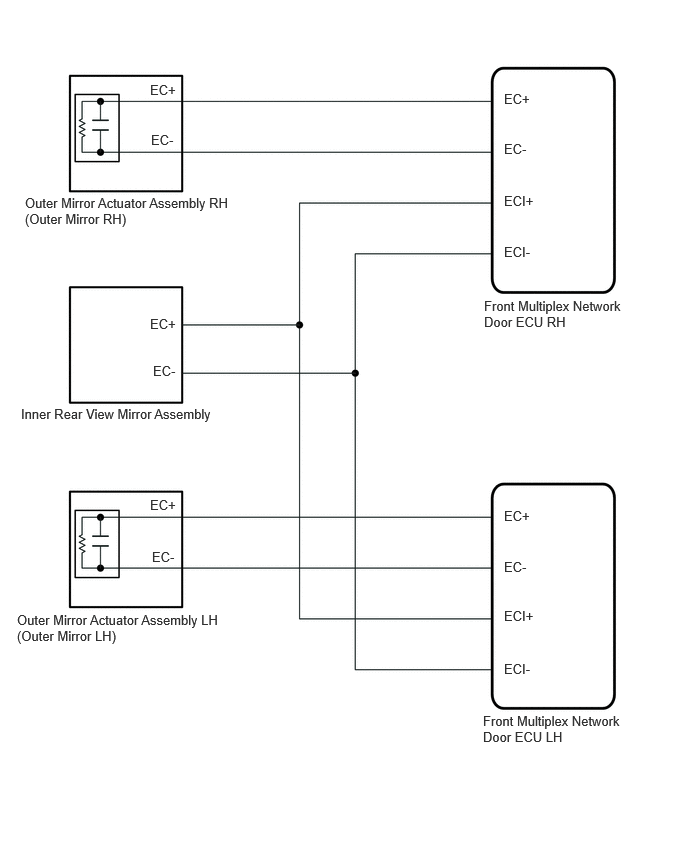

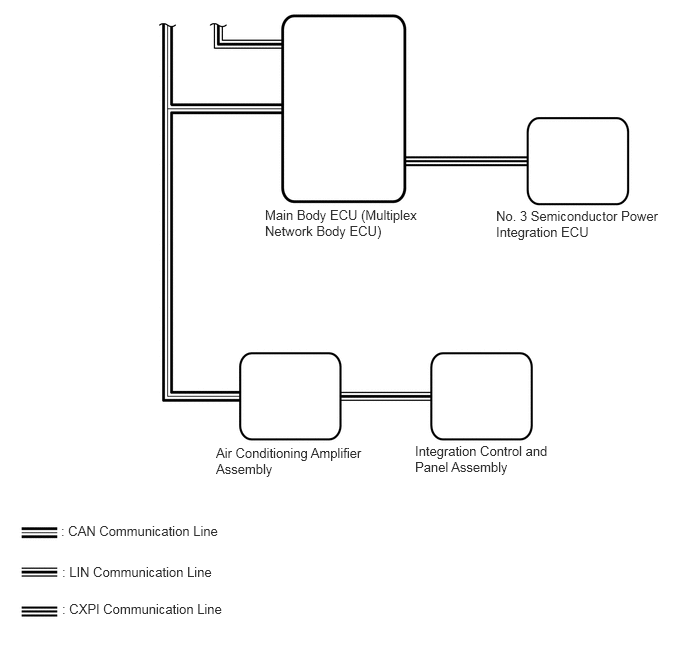

| Air Conditioning Amplifier Assembly |
Main Body ECU (Multiplex Network Body ECU) |
Mirror heater drive request signal |
CAN |

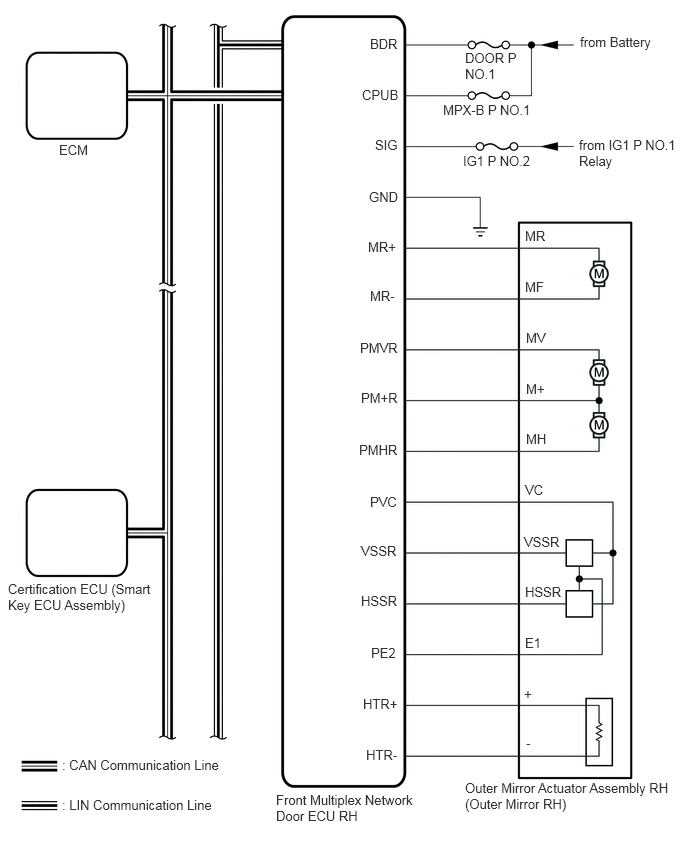

| Main Body ECU (Multiplex Network Body ECU) |
Front Multiplex Network Door ECU |
- IG signal
- ACC signal
- Multiplex network master switch assembly operation signal
- Mirror position request signal (seat position memory and reactivation function)
- Mirror position request signal (reverse shift-linked function)
- Mirror heater drive request signal
|
CAN |

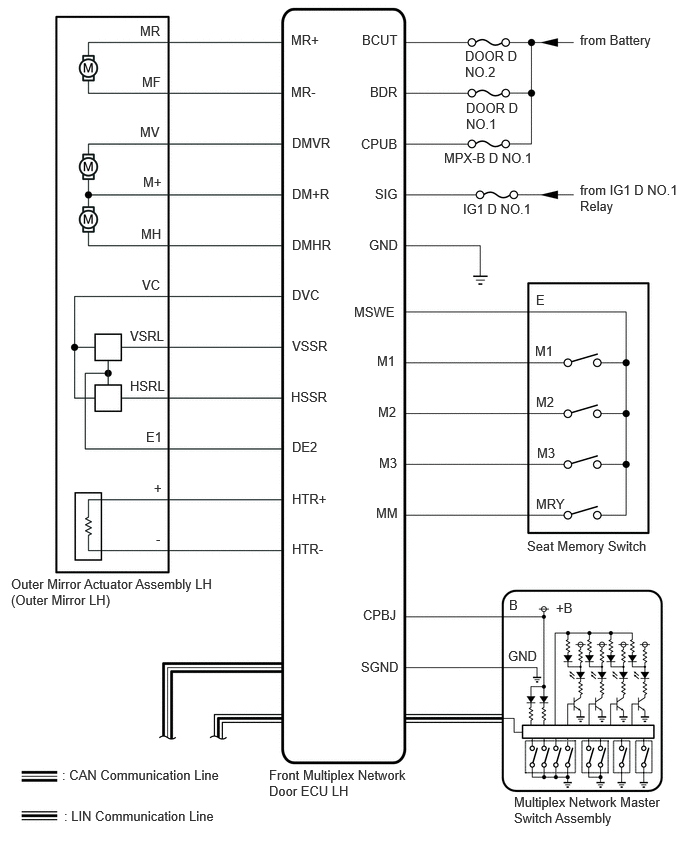

| Front Multiplex Network Door ECU |
Main Body ECU (Multiplex Network Body ECU) |
- Outer mirror state signal
- Seat memory switch signal
|
CAN |
| Certification ECU (Smart Key ECU Assembly) |
Main Body ECU (Multiplex Network Body ECU) |
Key ID signal |
CAN |
| ECM |
Main Body ECU (Multiplex Network Body ECU) |
Reverse signal |
CAN |
| Air Conditioning Control Assembly |
Air Conditioning Amplifier Assembly |
Mirror heater switch (rear window defogger switch) operation signal |
LIN |
| Multiplex Network Master Switch Assembly |
Main Body ECU (Multiplex Network Body ECU) |
Outer mirror switch signal |
LIN |
