System Diagram [05/2023 - ]

SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

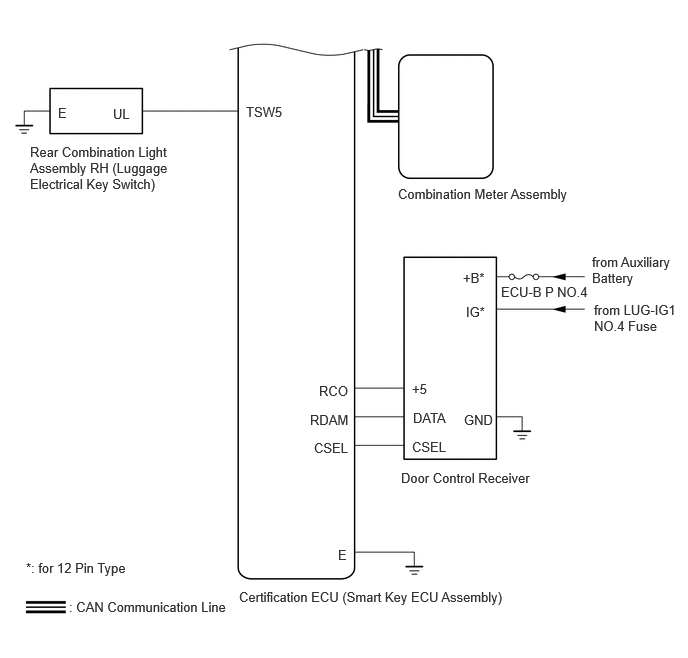

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Diagram (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

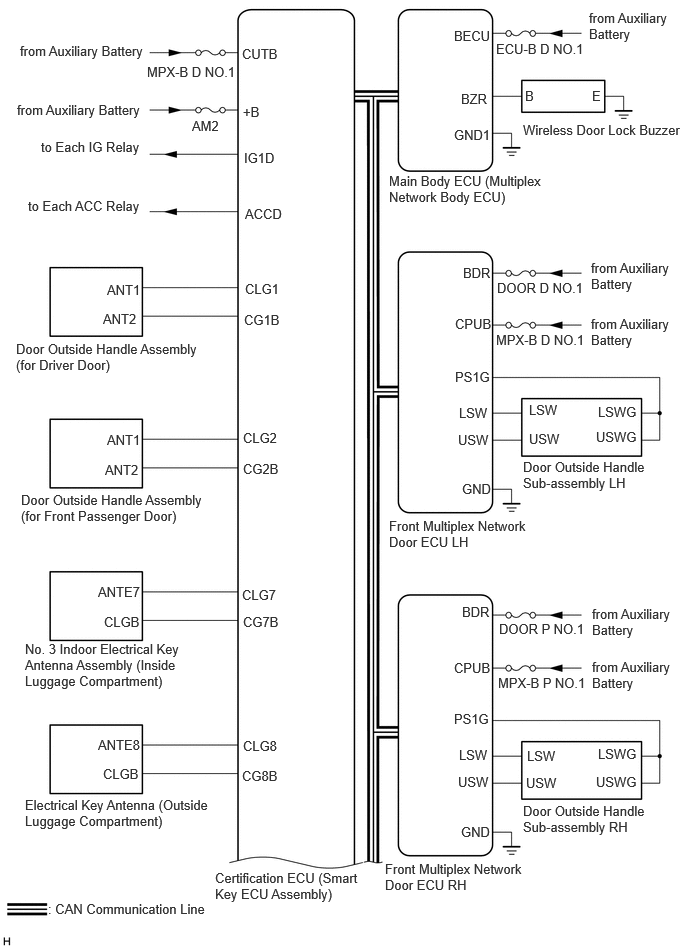

Fig 2: Smart Access System With Push-Button Start (For Entry Function) Diagram (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)
Refer to SYSTEM DIAGRAM [05/2023 - ]
POWER DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [05/2023 - ]
WIRELESS DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [05/2023 - ]
