DTC B2312: Power Window Switch Malfunction [12/2017 - 10/2023]: Procedure

  1. CHECK FOR DTC
    1. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

      Body Electrical > Master Switch > Clear DTCs

      Body Electrical > D-Door Motor > Clear DTCs

      Body Electrical > P-Door Motor > Clear DTCs

      Body Electrical > RL-Door Motor > Clear DTCs

      Body Electrical > RR-Door Motor > Clear DTCs

    2. Check for DTCs.

      Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

      Body Electrical > Master Switch > Trouble Codes

      Body Electrical > D-Door Motor > Trouble Codes

      Body Electrical > P-Door Motor > Trouble Codes

      Body Electrical > RL-Door Motor > Trouble Codes

      Body Electrical > RR-Door Motor > Trouble Codes

      Result

      Result Proceed to
      DTC B2312 is not output A
      DTC B2312 is output B

    Result:

    A

    END (DUE TO SWITCH BEING OPERATED FOR 20 SECONDS OR MORE)

    Result:

    B

    See step  2

  2. CHECK FOR DTC
    1. Check the parts which the DTCs have been output from.

      Result

      Result Proceed to
      DTC output from Master Switch A
      DTC output from D-Door Motor B
      DTC output from P-Door Motor C
      DTC output from RL-Door Motor D
      DTC output from RR-Door Motor E

    Result:

    A

    REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY. Refer to  REMOVAL [12/2017 - ]

    Result:

    C

    See step  6

    Result:

    D

    See step  9

    Result:

    E

    See step  12

    Result:

    B

    See step  3

  3. READ VALUE USING TECHSTREAM (D-DOOR MOTOR)
    1. Read the Data List according to the display on the Techstream.

      Refer to DATA LIST / ACTIVE TEST [12/2017 - 10/2023]

      Body Electrical > D-Door Motor > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      D Door P/W Up SW Driver door power window manual up switch signal OFF or ON OFF: Driver door power window manual up switch not being operated
      ON: Driver door power window manual up switch being operated      		 -
      D Door P/W Down SW Driver door power window manual down switch signal OFF or ON OFF: Driver door power window manual down switch not being operated
      ON: Driver door power window manual down switch being operated      		 -

      Body Electrical > D-Door Motor > Data List

      Tester Display
      D Door P/W Up SW
      D Door P/W Down SW

      OK

      On the Techstream screen, ON or OFF is displayed accordingly.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to  REMOVAL [12/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]  , or refer to  REMOVAL [10/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    NG

    See step  4

  4. CHECK MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY
    1. Disconnect the front power window regulator motor assembly LH connector.

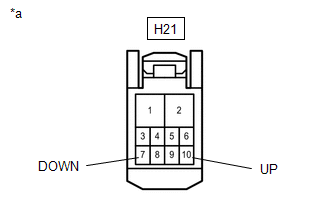

      GTY837283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Front view of wire harness connector
      (to Front Power Window Regulator Motor Assembly LH)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      H21-10 (UP) - Body ground Engine switch on (IG) 11 to 14 V
      H21-7 (DOWN) - Body ground Engine switch on (IG) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to  REMOVAL [12/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]  , or refer to  REMOVAL [10/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    NG

    See step  5

  5. CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)
    1. Disconnect the I5 multiplex network master switch assembly connector.
    2. Disconnect the H21 front power window regulator motor assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I5-20 (UP) - Body ground Always 10 kΩ or higher
      I5-15 (DOWN) - Body ground Always 10 kΩ or higher
      H21-10 (UP) - Body ground Always 10 kΩ or higher
      H21-7 (DOWN) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY. Refer to  REMOVAL [12/2017 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  6. READ VALUE USING TECHSTREAM (P-DOOR MOTOR)
    1. Read the Data List according to the display on the Techstream.

      Refer to DATA LIST / ACTIVE TEST [12/2017 - 10/2023]

      Body Electrical > P-Door Motor > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      P Door P/W Auto SW Front passenger door power window auto switch signal OFF or ON OFF: Front passenger door power window auto switch not being operated
      ON: Front passenger door power window auto switch being operated      		 -
      P Door P/W Up SW Front passenger door power window manual up switch signal OFF or ON OFF: Front passenger door power window manual up switch not being operated
      ON: Front passenger door power window manual up switch being operated      		 -
      P Door P/W Down SW Front passenger door power window manual down switch signal OFF or ON OFF: Front passenger door power window manual down switch not being operated
      ON: Front passenger door power window manual down switch being operated      		 -

      Body Electrical > P-Door Motor > Data List

      Tester Display
      P Door P/W Auto SW
      P Door P/W Up SW
      P Door P/W Down SW

      OK

      On the Techstream screen, ON or OFF is displayed accordingly.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to  REMOVAL [12/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]  , or refer to  REMOVAL [10/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    NG

    See step  7

  7. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
    1. Remove the power window regulator switch assembly.

      Refer to REMOVAL [12/2017 - ]

    2. Inspect the power window regulator switch assembly.

      Refer to INSPECTION [12/2017 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY. Refer to  REMOVAL [12/2017 - ]

    Result:

    OK

    See step  8

  8. CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)
    1. Disconnect the I1 power window regulator switch assembly connector.
    2. Disconnect the H2 front power window regulator motor assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      I1-2 (UP) - Body ground Always 10 kΩ or higher
      I1-4 (AUTO) - Body ground Always 10 kΩ or higher
      I1-10 (DOWN) - Body ground Always 10 kΩ or higher
      H2-10 (UP) - Body ground Always 10 kΩ or higher
      H2-4 (AUTO) - Body ground Always 10 kΩ or higher
      H2-7 (DOWN) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to  REMOVAL [12/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]  , or refer to  REMOVAL [10/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  9. READ VALUE USING TECHSTREAM (RL-DOOR MOTOR)
    1. Read the Data List according to the display on the Techstream.

      Refer to DATA LIST / ACTIVE TEST [12/2017 - 10/2023]

      Body Electrical > RL-Door Motor > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      RL Door P/W Auto SW Rear LH door power window auto switch signal OFF or ON OFF: Rear LH door power window auto switch not being operated
      ON: Rear LH door power window auto switch being operated      		 -
      RL Door P/W Up SW Rear LH door power window manual up switch signal OFF or ON OFF: Rear LH door power window manual up switch not being operated
      ON: Rear LH door power window manual up switch being operated      		 -
      RL Door P/W Down SW Rear LH door power window manual down switch signal OFF or ON OFF: Rear LH door power window manual down switch not being operated
      ON: Rear LH door power window manual down switch being operated      		 -

      Body Electrical > RL-Door Motor > Data List

      Tester Display
      RL Door P/W Auto SW
      RL Door P/W Up SW
      RL Door P/W Down SW

      OK

      On the Techstream screen, ON or OFF is displayed accordingly.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to  REMOVAL [12/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]  , or refer to  REMOVAL [10/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    NG

    See step  10

  10. INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH
    1. Remove the rear power window regulator switch assembly LH.

      Refer to REMOVAL [12/2017 - ]

    2. Inspect the rear power window regulator switch assembly LH.

      Refer to INSPECTION [12/2017 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH. Refer to  REMOVAL [12/2017 - ]

    Result:

    OK

    See step  11

  11. CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH - REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)
    1. Disconnect the J5 rear power window regulator switch assembly LH connector.
    2. Disconnect the K15 rear power window regulator motor assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J5-2 (UP) - Body ground Always 10 kΩ or higher
      J5-4 (AUTO) - Body ground Always 10 kΩ or higher
      J5-10 (DOWN) - Body ground Always 10 kΩ or higher
      K15-10 (UP) - Body ground Always 10 kΩ or higher
      K15-4 (AUTO) - Body ground Always 10 kΩ or higher
      K15-7 (DOWN) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH. Refer to  REMOVAL [12/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]  , or refer to  REMOVAL [10/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  12. READ VALUE USING TECHSTREAM (RR-DOOR MOTOR)
    1. Read the Data List according to the display on the Techstream.

      Refer to DATA LIST / ACTIVE TEST [12/2017 - 10/2023]

      Body Electrical > RR-Door Motor > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      RR Door P/W Auto SW Rear RH door power window auto switch signal OFF or ON OFF: Rear RH door power window auto switch not being operated
      ON: Rear RH door power window auto switch being operated      		 -
      RR Door P/W Up SW Rear RH door power window manual up switch signal OFF or ON OFF: Rear RH door power window manual up switch not being operated
      ON: Rear RH door power window manual up switch being operated      		 -
      RR Door P/W Down SW Rear RH door power window manual down switch signal OFF or ON OFF: Rear RH door power window manual down switch not being operated
      ON: Rear RH door power window manual down switch being operated      		 -

      Body Electrical > RR-Door Motor > Data List

      Tester Display
      RR Door P/W Auto SW
      RR Door P/W Up SW
      RR Door P/W Down SW

      OK

      On the Techstream screen, ON or OFF is displayed accordingly.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to  REMOVAL [12/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]  , or refer to  REMOVAL [10/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    NG

    See step  13

  13. INSPECT REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH
    1. Remove the rear power window regulator switch assembly RH.

      Refer to REMOVAL [12/2017 - ]

    2. Inspect the rear power window regulator switch assembly RH.

      Refer to INSPECTION [12/2017 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH. Refer to  REMOVAL [12/2017 - ]

    Result:

    OK

    See step  14

  14. CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH - REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)
    1. Disconnect the J1 rear power window regulator switch assembly RH connector.
    2. Disconnect the K1 rear power window regulator motor assembly RH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J1-2 (UP) - Body ground Always 10 kΩ or higher
      J1-4 (AUTO) - Body ground Always 10 kΩ or higher
      J1-10 (DOWN) - Body ground Always 10 kΩ or higher
      K1-10 (UP) - Body ground Always 10 kΩ or higher
      K1-4 (AUTO) - Body ground Always 10 kΩ or higher
      K1-7 (DOWN) - Body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH. Refer to  REMOVAL [12/2017 - 09/2018]  , or refer to  REMOVAL [09/2018 - 10/2020]  , or refer to  REMOVAL [10/2020 - 10/2022]  , or refer to  REMOVAL [10/2022 - 10/2023]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
