DTC P16B5-11: Multi Flow Control Valve Sensor Circuit Short to Ground [12/2017 - ]: Description
The ball valve position sensor is installed at the top of the water control valve shaft and detects the ball valve position.

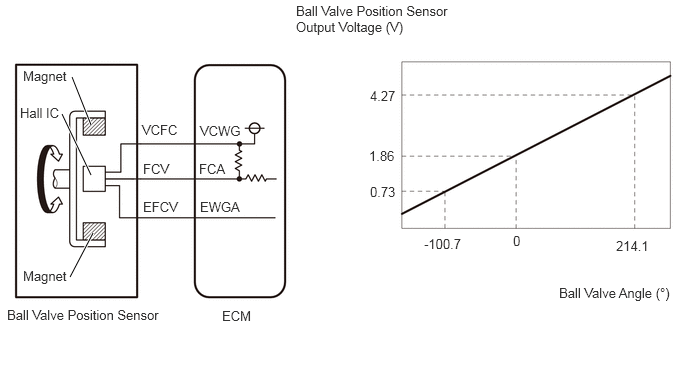

The ball valve position sensor is a non-contact type and uses Hall elements which can yield the magnetic field strength as an electrical signal through the Hall effect, which enables output voltage corresponding to the ball valve position to be obtained linearly.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory | Note |
|---|---|---|---|---|---|---|
| P16B5-11 | Multi Flow Control Valve Sensor Circuit Short to Ground | The ball valve position sensor output voltage is less than 0.55 V for 3 seconds or more (1 trip detection logic). |
|
Comes on | DTC stored | SAE: P16B6 |
