System Diagram [12/2017 - 10/2020]

WARNING: This page is about a different car, the 2022 Lexus LS 500, 2021 Lexus LS 500, 2020 Lexus LS 500, 2019 Lexus LS 500, and 2018 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.

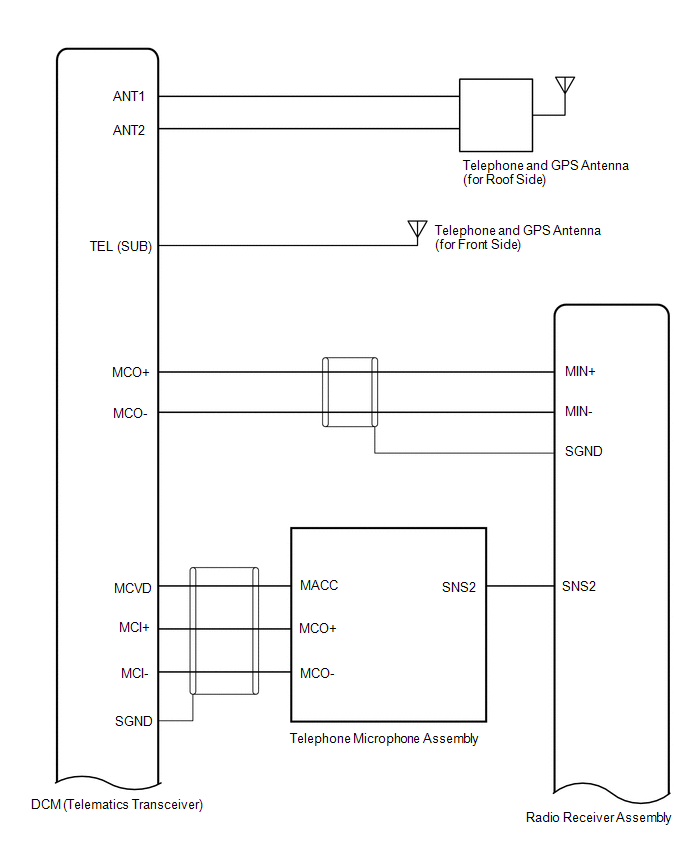

Fig 1: Lexus Enform System Wiring Diagram (1 Of 3)
GTY805955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

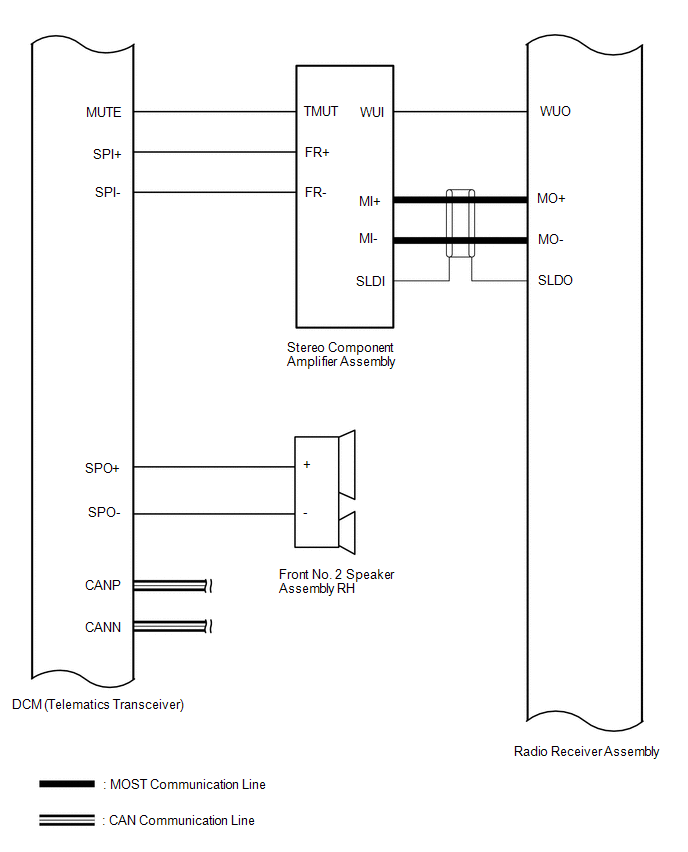

Fig 2: Safety Connect System Wiring Diagram (3 Of 4)
GTY791703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

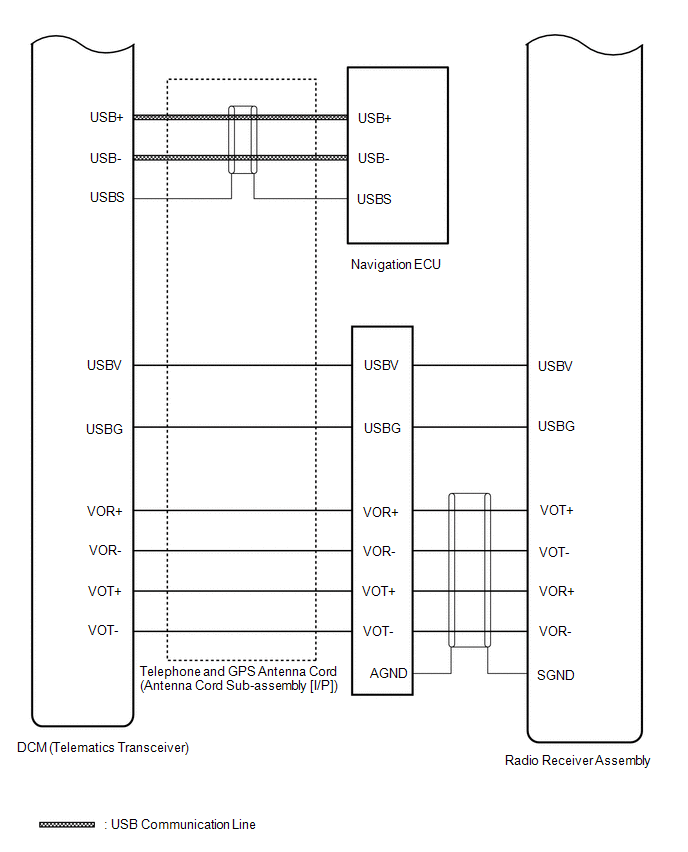

Fig 3: Lexus Enform System Wiring Diagram (3 Of 3)
GTY810495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
