Multi-Terrain Monitor System - Diagnostics - Introduction
>>
Multi-Terrain Monitor System
>>
System Diagram [12/2021 - ]
>>
System Diagram [12/2021 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

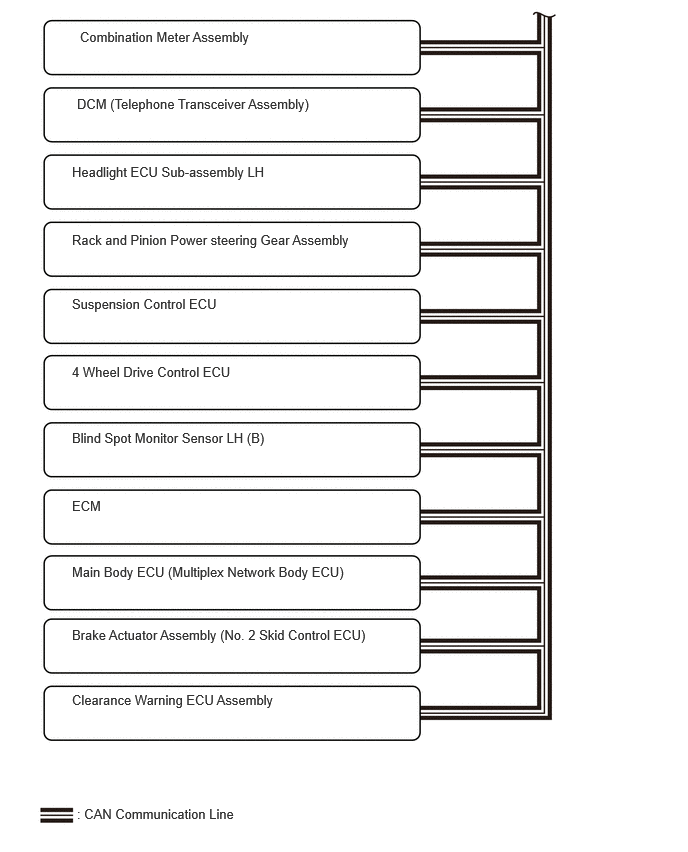

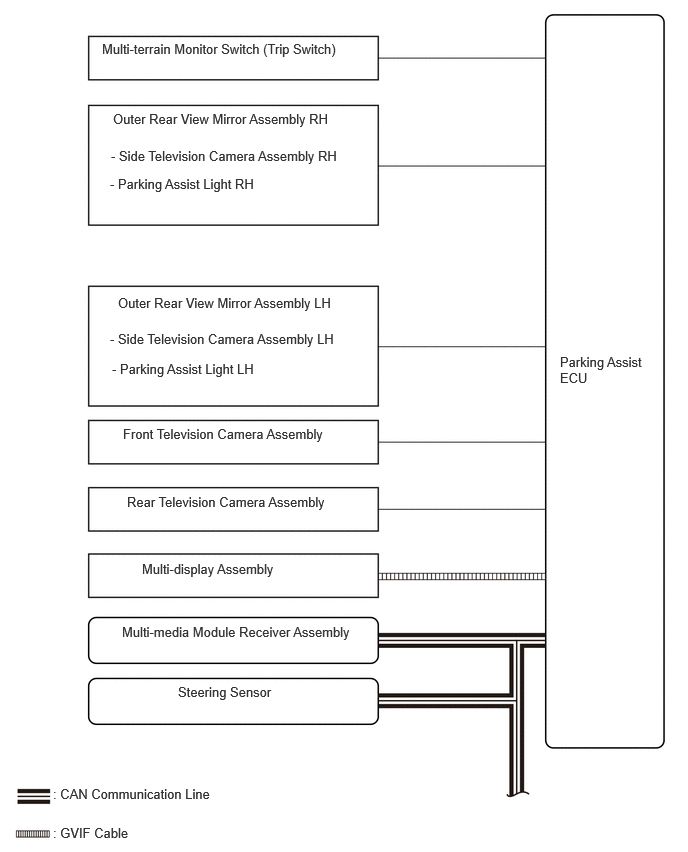

System Diagram [12/2021 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
