System Diagram [12/2021 - ]

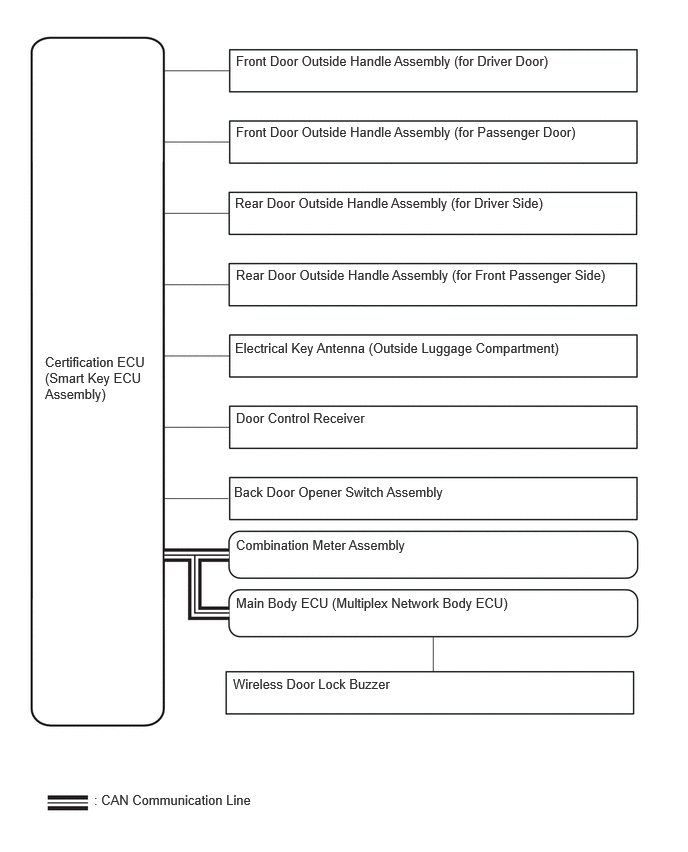

  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)
    GTY1058850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)

    Refer to SYSTEM DIAGRAM [12/2021 - ]

  3. POWER DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [12/2021 - ]

  4. WIRELESS DOOR LOCK CONTROL SYSTEM

    Refer to SYSTEM DIAGRAM [12/2021 - ]
