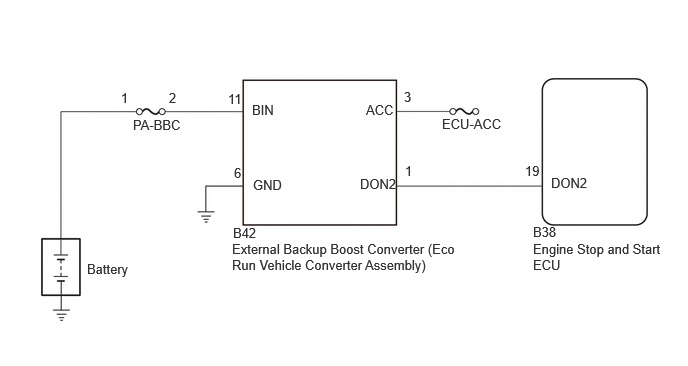

DTC P33B3-00: External BBC Circuit [12/2021 - 10/2023]: Wiring Diagram

GTY1075620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
