DTC P107A-11: Fuel Rail Pressure Sensor (Low) / Fuel Rail Pressure Sensor "B" Circuit Short to Ground [12/2021 - ]: Description

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

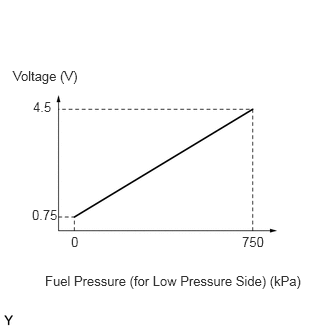

The No. 2 fuel pressure sensor (for low pressure side) replaces the fuel pressure with electrical signals and outputs them to the ECM. The ECM controls the optimal fuel pressure for the operation conditions to reduce the fuel pump power consumption and improve fuel economy.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	DTC Output from	Priority	Note
P107A-11	Fuel Rail Pressure Sensor (Low) / Fuel Rail Pressure Sensor "B" Circuit Short to Ground	The No. 2 fuel pressure sensor (for low pressure side) output voltage is less than 0.43 V for 3 seconds or more (1 trip detection logic).	Open or short in No. 2 fuel pressure sensor (for low pressure side) circuit No. 2 fuel pressure sensor (for low pressure side) ECM	Comes on	Engine	A	SAE: P107C

HINT:

When a DTC is output, check the Data List item "Fuel Pressure (Low) / Fuel Pressure 2" using the GTS.

Refer to DATA LIST / ACTIVE TEST [12/2021 - ]

DTC No.	Fuel Pressure (Low) / Fuel Pressure 2	Malfunction
P107A-11	Approximately 0 kPag	Short to ground in PFL circuit Short in PFL to EPFL circuit Open in VCPF circuit

If the Data List displays a normal value, the normal value may be due to a temporary recovery from the malfunction condition. Check for intermittent problems.
