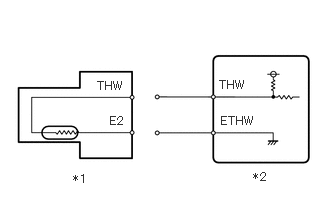

DTC P0115-11: Engine Coolant Temperature Sensor 1 Circuit Short to Ground [12/2021 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pre-procedure1

1. Disconnect the engine coolant temperature sensor connector.

   Procedure1

2. According to the display on the GTS, read the Data List.

   Powertrain > Engine > Data List

   Tester Display
   Coolant Temperature

   Result

   Result	Proceed to
   The value of Coolant Temperature is -40°C	A
   None of the above conditions are met	B

   HINT:

   -40°C (-40°F)

   Post-procedure1

3. None

Result:

A

REPLACE ENGINE COOLANT TEMPERATURE SENSOR

Refer to REMOVAL [12/2021 - ]

HINT:

Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

Refer to INITIALIZATION [12/2021 - ]

Result:

B

See step  2

Pre-procedure1

1. Disconnect the engine coolant temperature sensor connector.
2. Disconnect the ECM connector.

   Procedure1

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C28-2 (THW) or C37-125 (THW) - Body ground and other terminals	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

   Post-procedure1

4. None

Result:

OK

REPLACE ECM. Refer to  REMOVAL [12/2021 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
