Disassembly [11/2021 - ]: Procedure

  1. REMOVE STEERING LOCK ACTUATOR WITH ECU ASSEMBLY (w/ Steering Lock Actuator Assembly)

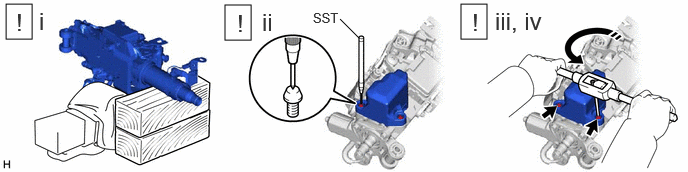

    1. GTY1061051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Secure the steering column assembly in a vise between aluminum plates.
        NOTE:

        Do not overtighten the vise.

      2. Using SST, strike a punch mark for drilling in the center of the steering lock set bolt.
        • SST: 09622-00010
        NOTE:

        When striking the punch mark, in order to prevent impact force from being applied to the steering lock actuator assembly, do not use a normal center punch.

      3. Using a drill, drill a hole in the 2 steering lock set bolts and insert a screw extractor.
      4. Using the screw extractor, remove the 2 steering lock set bolts and steering lock actuator with ECU assembly.
        NOTE:

        Do not use a tool or equivalent to push in the screw extractor. Push in the screw extractor by hand.

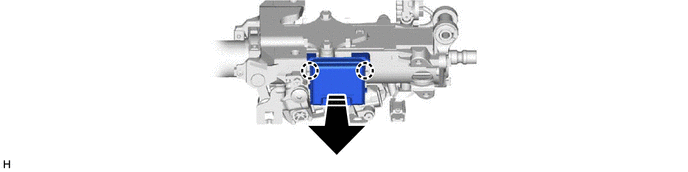

  2. REMOVE MULTIPLEX TILT AND TELESCOPIC ECU
    1. GTY1061193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
