Removal [09/2014 - 11/2017]: Procedure

Refer to REMOVAL [09/2014 - ]

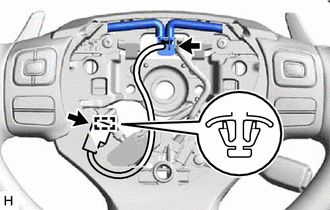

1. Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the steering pad switch connector clamp from the lower steering wheel boss cover.
3. Disconnect the steering pad switch connector from the No. 1 switch wire.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

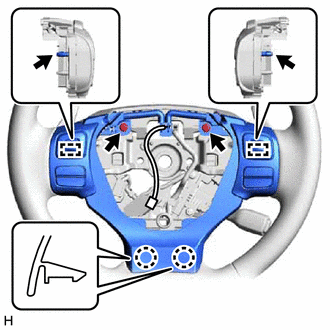

   Remove the 2 screws.

5. Disengage the 2 claws and 2 pins to remove the steering pad switch assembly from the steering wheel sub-assembly.
