System Diagram [03/2019 - 11/2021]

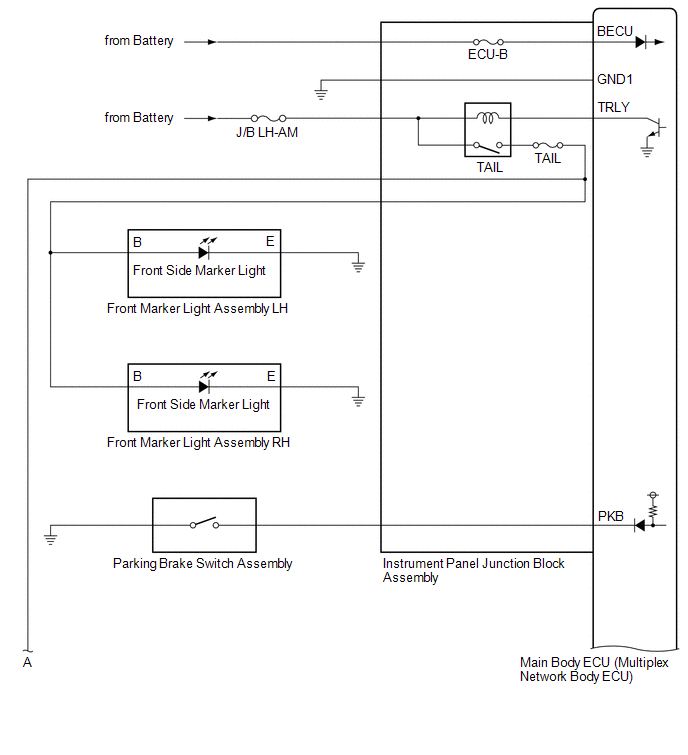

Fig 1: Lighting System Diagram (1 Of 8)

GTY960861

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Lighting System Diagram (2 Of 8)

GTY748496

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Lighting System Diagram (3 Of 8)

GTY809993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

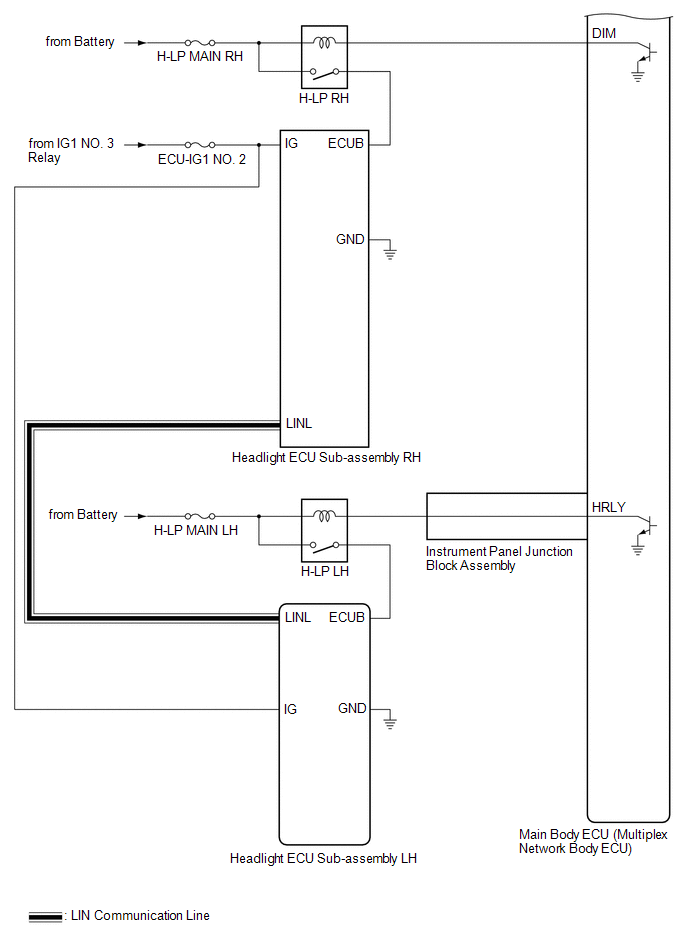

Fig 4: Lighting System Diagram (4 Of 8)

GTY961487

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Lighting System Diagram (5 Of 8)

GTY803445

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

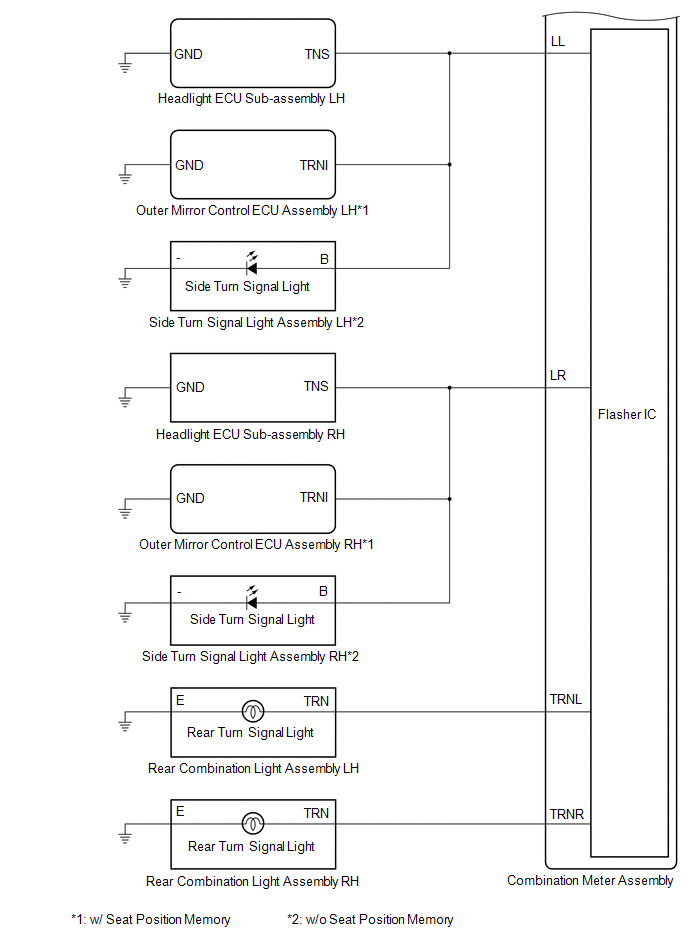

Fig 6: Lighting System Diagram (6 Of 8)

GTY961237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Lighting System Diagram (7 Of 8)

GTY786689

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Lighting System Diagram (8 Of 8)

GTY826489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

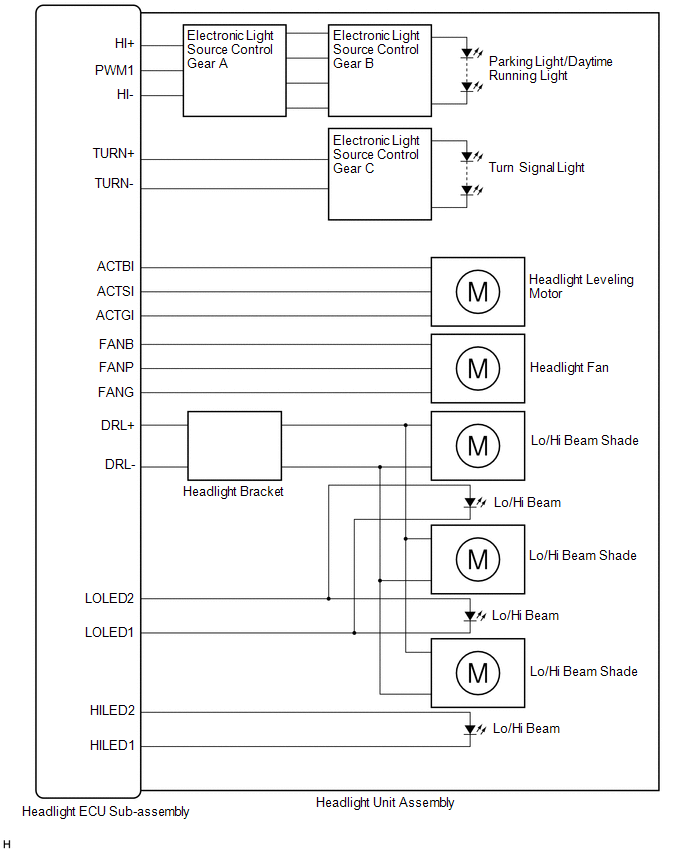

HEADLIGHT ASSEMBLY CIRCUIT (for Triple Beam Headlight)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

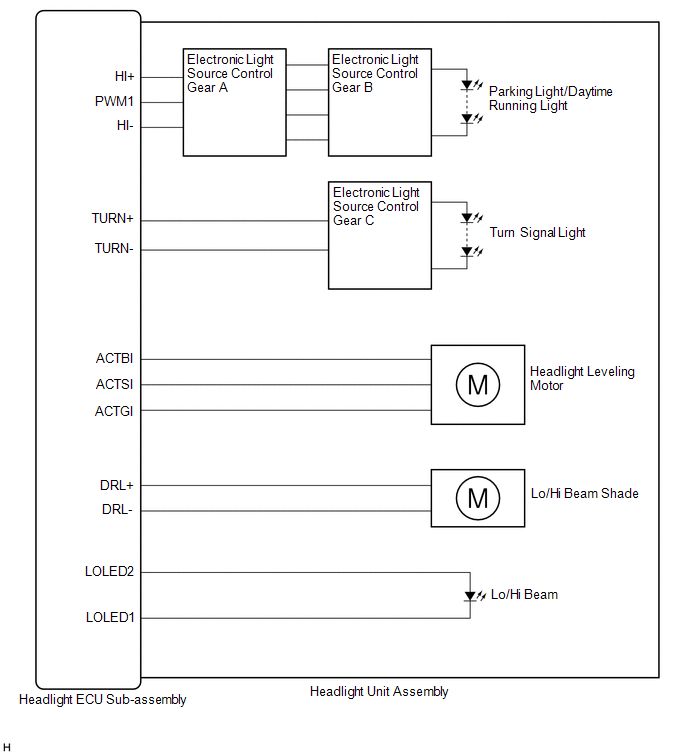

HEADLIGHT ASSEMBLY CIRCUIT (for Single Beam Headlight)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
