DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input; DTC P0193: Fuel Rail Pressure Sensor Circuit High Input [09/2014 - 10/2015]: Procedure

1. Connect the Techstream to the DLC3.
2. Start the engine.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine / Data List / Gas General / Fuel Press.

   Powertrain > Engine > Data List

   Tester Display
   Fuel Press

5. Read the values.

   OK

   3500 to 4500 kPag (idling, warmed up engine).

   Result

   Fuel Pressure (kPag)	Proceed to
   Approximately 33000 or higher	A
   Approximately 0
   (3500 to 4500)*	B

   HINT:

   *: The value must change when the engine is moving or stationary.

Result:

B

CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [09/2014 - ]

Result:

A

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the fuel pressure sensor connector.
2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

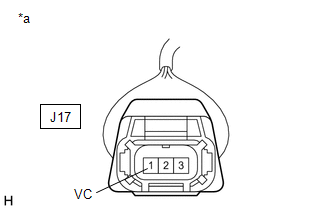

   Tester Connection	Condition	Specified Condition
   J17-1 (VC) - Body ground	Engine switch on (IG)	4.75 to 5.25 V

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  6

Result:

OK

See step  3

1. Inspect the fuel pressure sensor.

   Refer to INSPECTION [09/2014 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR). Refer to  REMOVAL [09/2014 - ]

Result:

OK

See step  4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Start the engine.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

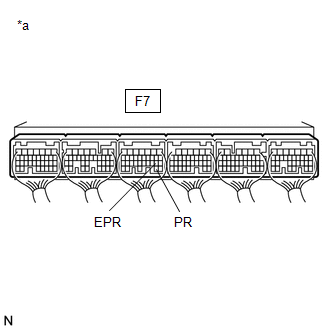

   Tester Connection	Condition	Specified Condition
   F7-29 (PR) - F7-19 (EPR)	Idling with warm engine	0.9 to 1.2 V

   HINT:

   The fuel pressure in the delivery pipe is 3.5 to 4.5 MPa.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  REMOVAL [09/2014 - ]

Result:

NG

See step  5

1. Disconnect the ECM connector.
2. Disconnect the fuel pressure sensor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F7-29 (PR) - J17-3 (PR)	Always	Below 1 Ω
   F7-19 (EPR) - J17-2 (E2)	Always	Below 1 Ω
   F7-29 (PR) or J17-3 (PR) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR). Refer to  REMOVAL [09/2014 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

1. Disconnect the ECM connector.
2. Disconnect the fuel pressure sensor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F7-28 (VCPR) - J17-1 (VC)	Always	Below 1 Ω
   F7-28 (VCPR) or J17-1 (VC) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  REMOVAL [09/2014 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
