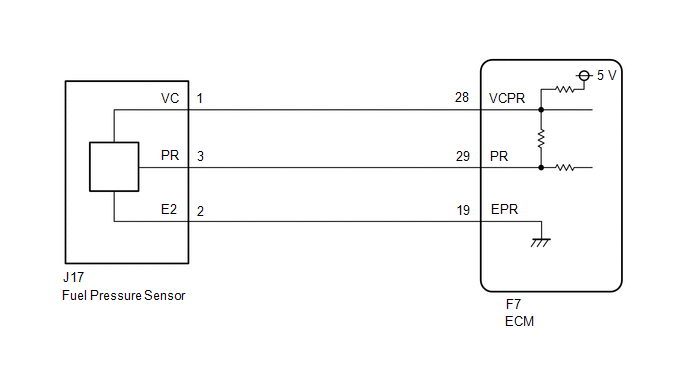

DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input; DTC P0193: Fuel Rail Pressure Sensor Circuit High Input [09/2014 - 10/2015]: Wiring Diagram

GTY509379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
