Removal [10/2022 - ]: Procedure

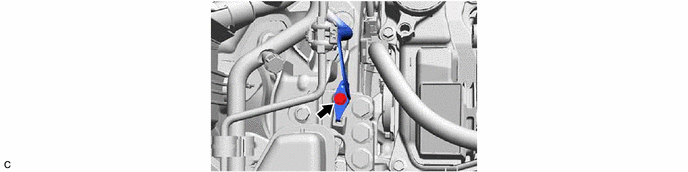

REMOVE EARTH BOLT CAP

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

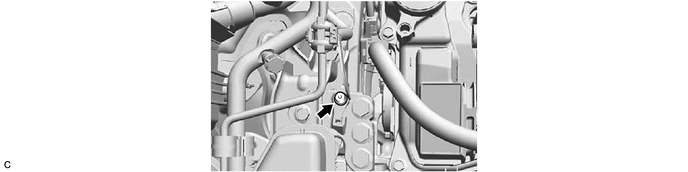

DISCONNECT NO. 2 EARTH WIRE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

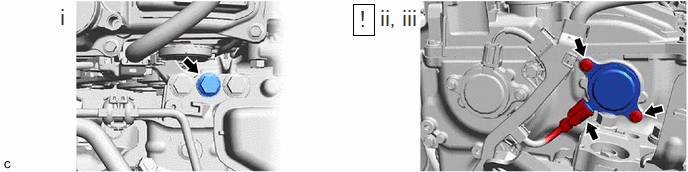

REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt.
Disconnect the cam timing oil control solenoid assembly connector.
Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing gear cover assembly.
NOTE:
If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the cam timing oil control solenoid assembly connector.
Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing gear cover assembly.
NOTE:
If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

REMOVE CAM TIMING OIL CONTROL SOLENOID O-RING

HINT:
Perform this procedure only when replacement of the cam timing oil control solenoid O-ring is necessary.

Remove the cam timing oil control solenoid O-ring from the cam timing oil control solenoid assembly.
NOTE:
- When removing the cam timing oil control solenoid O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.
- If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
