Terminals Of Ecu [01/2023 - ]

ESU

HINT:

Since the ESU uses waterproof connectors, the voltage and waveforms cannot be inspected directly. Standard voltage readings and waveforms are indicated for reference only.

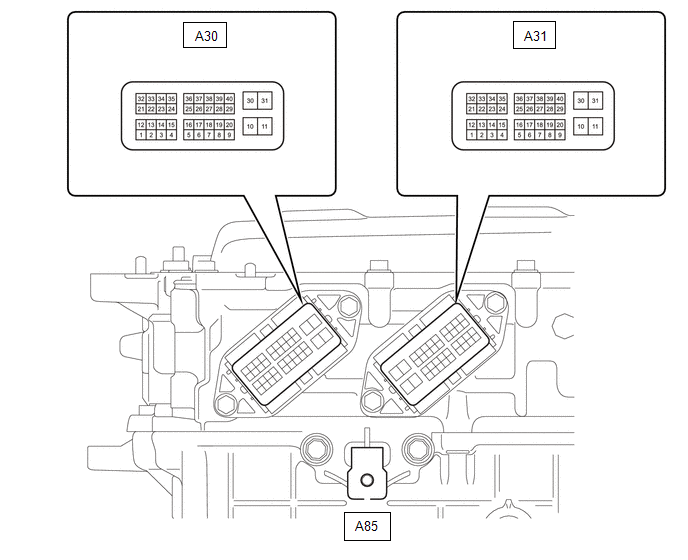

Connector Code	Terminal No.	Symbol	Terminal Description
A30	1	CBMP	Charging connector lock motor forward operation
	2	-	Not used
	3	CBMN	Charging connector lock motor reverse operation
	4	-	Not used
	5	IGIG	Power source
	6	-	Not used
	7	-	Not used
	8	CA1H	CAN communication signal
	9	CA1L	CAN communication signal
	10	E1	Earth ground
	11	-	Not used
	12	-	Not used
	13	-	Not used
	14	-	Not used
	15	-	Not used
	16	DCEN	Charging permission signal
	17	-	Not used
	18	-	Not used
	19	-	Not used
	20	-	Not used
	21	-	Not used
	22	-	Not used
	23	-	Not used
	24	-	Not used
	25	-	Not used
	26	ILO1	Interlock switch (OUT)
	27	-	Not used
	28	CA5H	CAN communication signal
	29	CA5L	CAN communication signal
	30	-	Not used
	31	E12	Earth ground
	32	-	Not used
	33	-	Not used
	34	-	Not used
	35	-	Not used
	36	-	Not used
	37	-	Not used
	38	ILI1	Interlock switch (IN)
	39	-	Not used
	40	HREL	Communication ECU drive signal
A31	1	-	Not used
	2	CPLT	Charge voltage judgment and allowable amperage recognition signals
	3	AM21	Power source
	4	-	Not used
	5		Not used
	6	LDSW	Charging lid switch signal
	7	-	Not used
	8	LDLP	Charging inlet light
	9	CBSW	Charging connector lock detection switch signal
	10	-	Not used
	11	-	Not used
	12	PIL	Charging indicator light
	13	-	Not used
	14	-	Not used
	15	IGCT	IGCT power source
	16	-	Not used
	17	-	Not used
	18	-	Not used
	19	-	Not used
	20	-	Not used
	21	PISW	Charging connector connection signal
	22	DRN5	Shield ground
	23	-	Not used
	24	-	Not used
	25	-	Not used
	26	-	Not used
	27	-	Not used
	28	-	Not used
	29	DRN7	Shield ground
	30	-	Not used
	31	-	Not used
	32	GTI2	AC charging inlet temperature 2 (Negative side) ground
	33	TIL2	AC charging inlet temperature 2 (Negative side)
	34	GTI1	AC charging inlet temperature 1 (Positive side) ground
	35	TIL1	AC charging inlet temperature 1 (Positive side)
	36	-	Not used
	37	GDI2	DC charging inlet temperature sensor 2 ground
	38	TDI2	DC charging inlet temperature sensor 2
	39	GDI1	DC charging inlet temperature sensor 1 ground
	40	TDI1	DC charging inlet temperature sensor 1
A85	1	AMD	Power source
