Removal [12/2017 - 09/2018]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Lexus LS 500, 2022 Lexus LS 500, 2021 Lexus LS 500, 2020 Lexus LS 500, and 2019 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.

PRECAUTION

Refer to PRECAUTION [12/2017 - 10/2023]

WARNING:

Be sure to read Precaution thoroughly before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [12/2017 - 10/2020]

NOTE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

Refer to PRECAUTION [12/2017 - 10/2020]

REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY
Refer to PROCEDURE - Step 24
DISCONNECT NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 3

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [12/2017 - 09/2018]
REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [12/2017 - 09/2018]
REMOVE INSTRUMENT SIDE PANEL LH
Refer to PROCEDURE - Step 7
REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
Refer to PROCEDURE - Step 14
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY
Refer to PROCEDURE - Step 21
REMOVE GLOVE COMPARTMENT DOOR PAD PLATE
Refer to PROCEDURE - Step 29
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 30

REMOVE FRONT STEERING CONTROL ECU

Fold back the floor carpet.

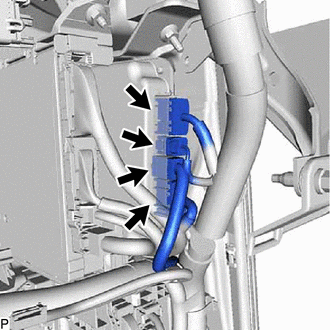

Disconnect the 4 connectors from the front steering control ECU.

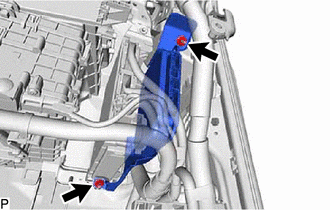

Remove the 2 nuts and front steering control ECU.
