System Diagram [11/2021 - ]

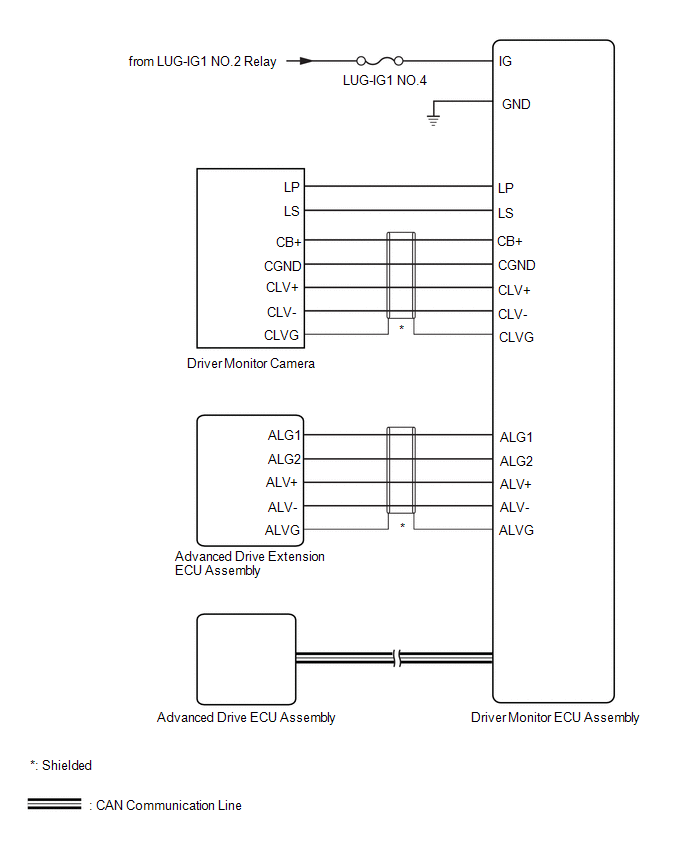

  1. SYSTEM DIAGRAM
    GTY1088174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
