Components [10/2017 - 10/2020]
WARNING: This page is about a different car, the 2020 Lexus LS 500h, 2019 Lexus LS 500h, and 2018 Lexus LS 500h. However, it is still accessible from the selected car via links, so may be relevant.

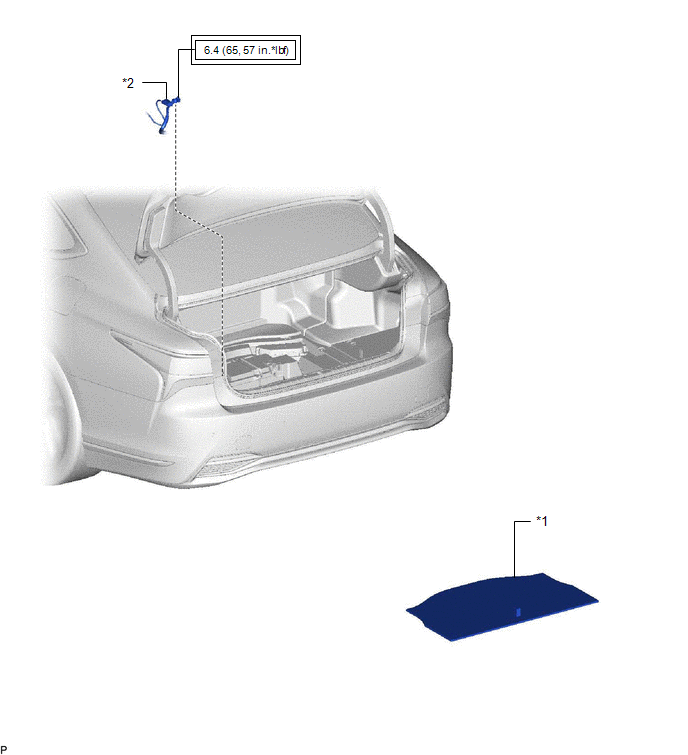

Fig 1: Steering Control ECU Replacement Components With Torque Specifications [10/2017 - 10/2020] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|

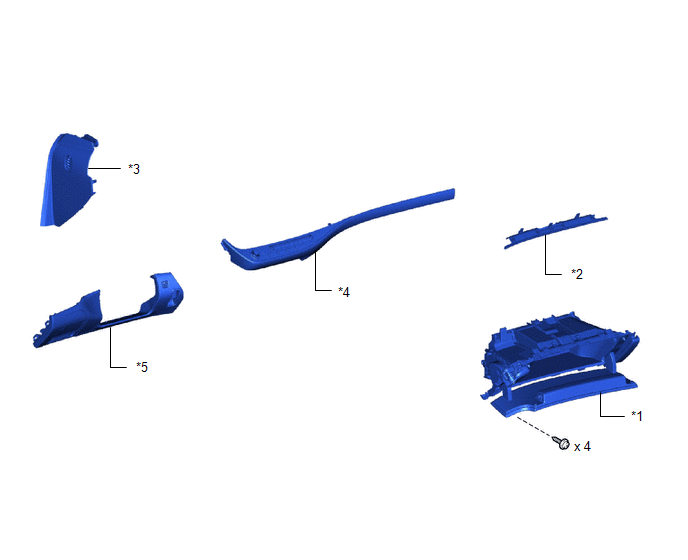

| *1 | GLOVE COMPARTMENT DOOR ASSEMBLY | *2 | GLOVE COMPARTMENT DOOR PAD PLATE |
| *3 | INSTRUMENT SIDE PANEL LH | *4 | LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY |
| *5 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY | - |
Fig 3: Steering Control ECU Replacement Components With Torque Specifications [10/2017 - 10/2020] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT STEERING CONTROL ECU | *2 | CONNECTOR |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
