Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [12/2021 - ]: Wiring Diagram

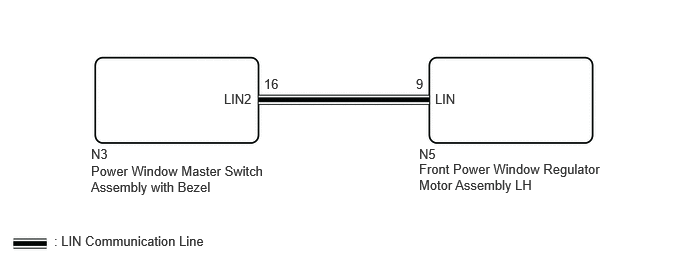

  1. w/o Door Closer System:
    GTY1080796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

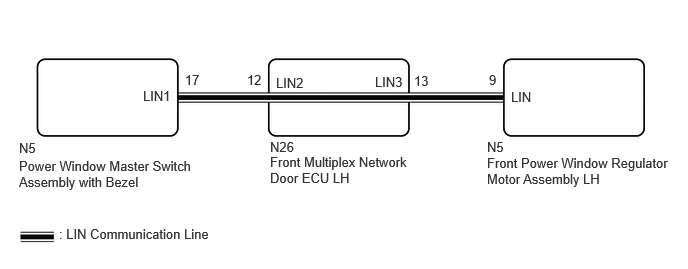

  2. w/ Door Closer System:
    GTY1081200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
